Vehicle Exploded View - VESPA VESPA GTV 300 4T 4V ie 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

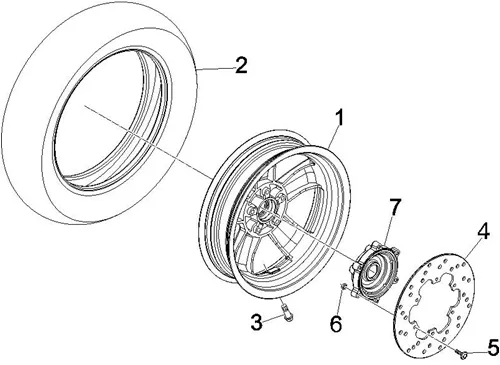

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/220/Vespa_GTV_300_4T_4V_ie_2010-2013_04.12.PNG)
1 |
647971 - ROUE AV/AR More informationQuantity required : 1 |
||||||
|
2 |
1C000743 - PNEU 130/70-12" FIRM MICHELIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
3 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/2/img/67082.jpg)
4 |
BRAKE DISC SCOOT OEM PIAGGIO 50 NRG POWER AV, 50-125 LIBERTY AV, 125 FLY 2012 > 2013 AR, 125-250-300 VESPA GTS AV + AR/GILERA 50 RUNNER 2005 > AV, 125 RUNNER 1998 > 2016 AR-56484R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/7/img/67347.jpg)
5 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-597564 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
6 |
NUT FLANGE AUTOBLOQUANT (M6) OEM PIAGGIO COMMON A LA RANGE-59565 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/1/img/67361.jpg)
7 |
FLASQUE/BRACKET BRAKE DISC OEM PIAGGIO 125-250-300 VESPA GTS, 125 FLY 2012 > 2013/GILERA 125 RUNNER 2005 >-598715 More informationQuantity required : 1 |
