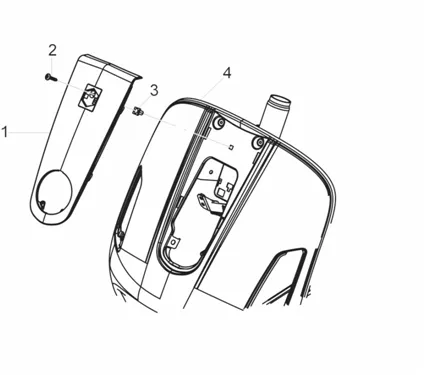

Vehicle Exploded View - VESPA VESPA GTV 300 4T 4V ie 2010-2013 VESPA

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search

1
P2R reference P2R reference
Maker reference Maker reference 62114345

6211434090 - CACHE-DIRECTION

1
P2R reference P2R reference 83883
Maker reference Maker reference 6211434090

6211434090 - CACHE-DIRECTION

More information

Quantity required : 1

62114340M9 - CACHE DIRECTION

1
P2R reference P2R reference 83887
Maker reference Maker reference 62114340M9

62114340M9 - CACHE DIRECTION

More information

Quantity required : 1

62114340YR1 - CACHE DIRECTION

1
P2R reference P2R reference 83889
Maker reference Maker reference 62114340YR1

62114340YR1-COVER STEERING

More information

Quantity required : 1

SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101

2
P2R reference P2R reference 96288
Maker reference Maker reference CM179101

SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101

More information

Quantity required : 1

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

3
P2R reference P2R reference 65832
Maker reference Maker reference 199190

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

More information

Quantity required : 1

FRONT SHIELD - TO WELD- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -6722835-

4
P2R reference P2R reference 90709
Maker reference Maker reference 6722835

FRONT SHIELD - TO WELD- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -6722835

More information

Quantity required : 1
