Vehicle Exploded View - VESPA VESPA GTV 300 4T 4V ie 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

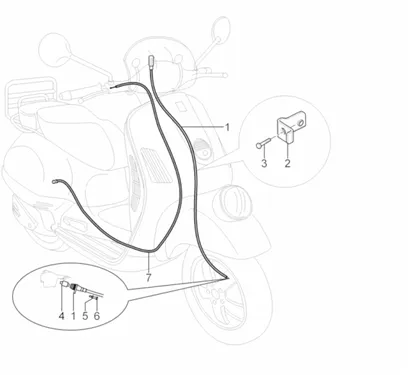

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/220/Vespa_GTV_300_4T_4V_ie_2010-2013_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/6/5/img/87165.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 250-300 VESPA GTV 2009 > 2013-650837 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/7/8/img/86978.jpg)
2 |
BRACKET/FLANGE MAINTIENT DE CABLES OEM PIAGGIO 125-250-300 VESPA GTS-649635 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
3 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/7/8/6/img/86786.jpg)
4 |
SPROCKET ENTRAINEUR DE INSTRUMENT CLUSTER OEM PIAGGIO 125 GTV 2006 < 2008/300 GTV 2010 >-648025 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
5 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/4/img/65634.jpg)
6 |
SCREW TH (5X16) OEM PIAGGIO COMMON A LA RANGE-031058 More informationQuantity required : 1 |
||||||
7 |
648174-TRANSMISTION THROTTLE More informationQuantity required : 1 |
