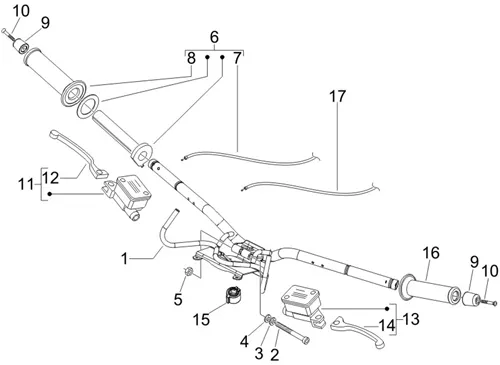

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/219/Vespa_GTV_250_ie_Navy_2007_03.06.PNG)
1 |
1B001759-HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
2 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
3 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
4 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/9/9/img/86999.jpg)
6 |
649898 - MANCHON More informationQuantity required : 1 |
||||||
|
7 |
648173-TRANSMISSION THROTTLE More informationQuantity required : 1 |
||||||
|
8 |
GRIP/REVETEMENT RIGHT OEM PIAGGIO 250-500 BEVERLY, 250-300 VESPA GTV-648551 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/5/img/68465.jpg)
9 |
HANDLEBAR END OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-673243 More informationQuantity required : 2 |
||||||
|
10 |
653019-SCREW More informationQuantity required : 2 |
||||||
|
11 |
CM080801 - POMPE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/3/img/86833.jpg)
12 |
LEVER BRAKE RIGHT HENG-TONG OEM PIAGGIO 250-300 VESPA GTV, 50-125 VESPA LXV-648378 More informationQuantity required : 1 |
||||||
|
13 |
CM079901 - POMPE FREIN More informationQuantity required : 1 |
||||||
|
14 |
LEVER BRAKE RIGHT HENG-TONG OEM PIAGGIO 250-300 VESPA GTV, 50-125 VESPA LXV-648378 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/2/5/img/81825.jpg)
15 |
BUSH CLAMP UPPER DE FORK OEM PIAGGIO 125-300 VESPA GTS/50 RUNNER-582828 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/5/7/img/86857.jpg)
16 |
GRIP/REVETEMENT LEFT OEM PIAGGIO 250-500 BEVERLY, 250-300 VESPA GTV-648550 More informationQuantity required : 1 |
||||||
|
17 |
648174-TRANSMISTION THROTTLE More informationQuantity required : 1 |
