Vehicle Exploded View - VESPA VESPA GTV 250 ie Navy 2007 VESPA

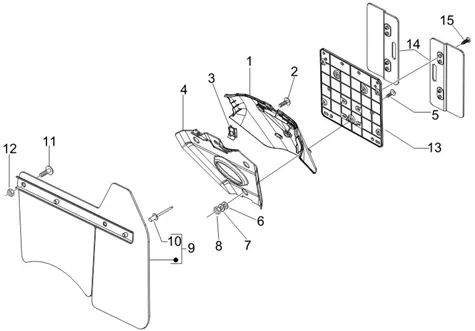

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
Couvercle arrière - Pare-boue
Search
62282400DE - BAVETTE ARR

1
P2R reference P2R reference 84661
Maker reference Maker reference 62282400DE

62282400DE-MUD FLAP ARR

More information

Quantity required : 1

622824 - BAVETTE AR BRUT

1
P2R reference P2R reference 84657
Maker reference Maker reference 622824

622824-MUD FLAP AR UNPAINTED

More information

Quantity required : 1

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

2
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

3
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

6235635 - PATTES

4
P2R reference P2R reference 84856
Maker reference Maker reference 6235635

6235635 - PATTES

More information

Quantity required : 1

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

5
P2R reference P2R reference 65408
Maker reference Maker reference 0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

More information

Quantity required : 3

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

6
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

More information

Quantity required : 3

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

7
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

More information

Quantity required : 3

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

8
P2R reference P2R reference 65459
Maker reference Maker reference 0201045

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

More information

Quantity required : 3

620236 - PARE BOUE

9
P2R reference P2R reference 83473
Maker reference Maker reference 620236

620236-PROTECTOR MUD

More information

Quantity required : 1

567642 - RIVET

10
P2R reference P2R reference 110236
Maker reference Maker reference 567642

567642 - RIVET

More information

Quantity required : 2

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

11
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

More information

Quantity required : 2

NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245

12
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245

More information

Quantity required : 2

DOOR PLATE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584884

13
P2R reference P2R reference 67322
Maker reference Maker reference 584884

DOOR PLATE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584884

More information

Quantity required : 1

RALLONGE FOR PORTEPLAQUE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584877

14
P2R reference P2R reference 67321
Maker reference Maker reference 584877

RALLONGE FOR PORTEPLAQUE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584877

More information

Quantity required : 2

SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596

15
P2R reference P2R reference 66074
Maker reference Maker reference 268596

SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596

More information

Quantity required : 4
