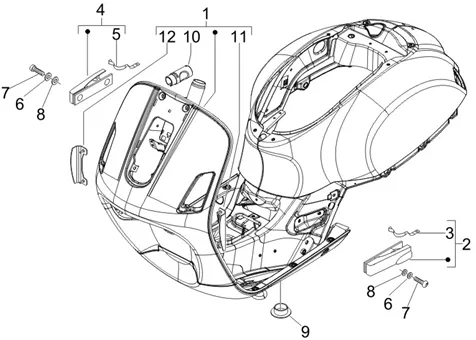

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/219/Vespa_GTV_250_ie_Navy_2007_02.01.PNG)
1 |
1B0008635-FRAME * More informationQuantity required : 1 |
||||||
|
1 |
FRAME "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS BLUE 222/A -62291450DE- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/0/7/img/80207.jpg)
2 |
PASSENGER FOOTREST LEFT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57326R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/6/1/2/img/83612.jpg)
3 |
SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/0/8/img/80208.jpg)
4 |
PASSENGER FOOTREST RIGHT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57327R More informationQuantity required : 1 |
||||||
|
5 |
SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
6 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/6/3/img/71063.jpg)
7 |
SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-975855 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
8 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/5/img/78065.jpg)
9 |
CAP DE FRAME OEM PIAGGIO COMMON A LA RANGE-299557 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/6/img/66306.jpg)
10 |
BRACKET LOCK OEM PIAGGIO 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD-298604 More informationQuantity required : 1 |
||||||
|
11 |
577397-BRACKET More informationQuantity required : 1 |
||||||
|
12 |
577398-BRACKET More informationQuantity required : 1 |
