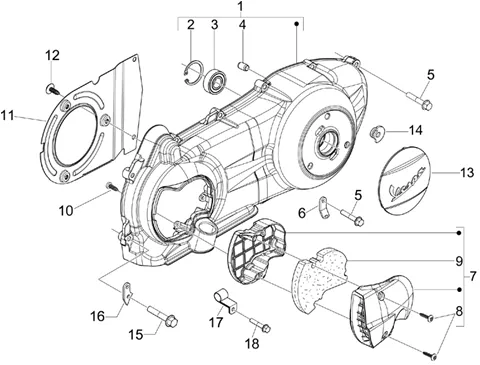

Vehicle Exploded View - VESPA VESPA GTS 300 ie Touring 2011-2012 VESPA

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - Refoidissement carter
Search
8714725 - COUVERCLE VARIATEUR

1
P2R reference P2R reference 70382
Maker reference Maker reference 8714725

8714725-COVER VARIATEUR

More information

Quantity required : 1

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

2
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

More information

Quantity required : 1

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

3
P2R reference P2R reference 66571
Maker reference Maker reference 4789853

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

4
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

5
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 8

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

6
P2R reference P2R reference 69338
Maker reference Maker reference 844964

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

More information

Quantity required : 1

842090 - COUVERCLE

7
P2R reference P2R reference 69212
Maker reference Maker reference 842090

842090-COVER

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

8
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

More information

Quantity required : 2

AIR FILTER CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842093

9
P2R reference P2R reference 69213
Maker reference Maker reference 842093

AIR FILTER CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842093

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

10
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

More information

Quantity required : 3

834266 - DIAPHRAGME POUR AIR CHAUD

11
P2R reference P2R reference 69110
Maker reference Maker reference 834266

834266-DIAPHRAGME FOR AIR CHAUD

More information

Quantity required : 1

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264

12
P2R reference P2R reference 66376
Maker reference Maker reference 430264

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264

More information

Quantity required : 1

CM155107 - COUVERCLE TRANSMISSION CHROMEE

13
P2R reference P2R reference 96103
Maker reference Maker reference CM155107

CM155107-COVER TRANSMISSION CHROMEE *

More information

Quantity required : 1

BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458

14
P2R reference P2R reference 70378
Maker reference Maker reference 871458

BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458

More information

Quantity required : 3

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

15
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 1

872493 - PLAQUETTE

16
P2R reference P2R reference 93145
Maker reference Maker reference 872493

872493-PLATE

More information

Quantity required : 1

597418 - COLLIER

17
P2R reference P2R reference 67338
Maker reference Maker reference 597418

597418-CLAMP

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

18
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 1
