Vehicle Exploded View - VESPA VESPA GTS 300 ie Touring 2011-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

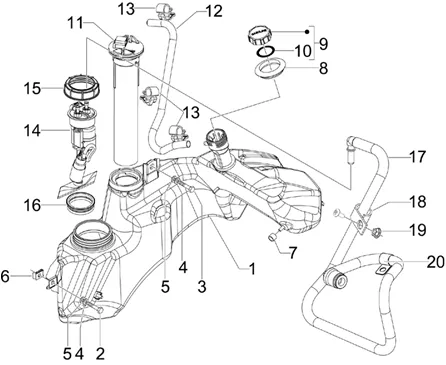

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/217/Vespa_GTS_300_ie_Touring_2011-2012_02.47.PNG)
1 |
1B009534-FUEL TANK (BMS) More informationQuantity required : 1 |
||||||
|
1 |
1B009534-FUEL TANK (BMS) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
3 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
5 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
7 |
623162-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/3/2/img/67632.jpg)
8 |
GASKET OF CAP DE TANK LIQUIDE COOLING OEM PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX-620737 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/4/img/66044.jpg)
9 |
CAP FUEL OEM PIAGGIO 50-125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, ZIP, TYPHOON, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY-259832 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
10 |
GASKET OF CAP FUEL OEM PIAGGIO COMMON A LA RANGE-258160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/7/8/1/img/201781.jpg)
11 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
|
11 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
12 |
HOSE/FUEL HOSE (5X10X1060) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-CM001432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
13 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 3 |
||||||
|
14 |
6405162-PUMP ELECTRIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
15 |
NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
16 |
GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003 More informationQuantity required : 1 |
||||||
|
17 |
621146-TUBE CARBURETTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/1/img/67101.jpg)
18 |
CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.jpg)
19 |
NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224 More informationQuantity required : 1 |
||||||
|
20 |
675510-CLAMP More informationQuantity required : 1 |
