Vehicle Exploded View - VESPA VESPA GTS 300 ie Touring 2011-2012 VESPA

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE

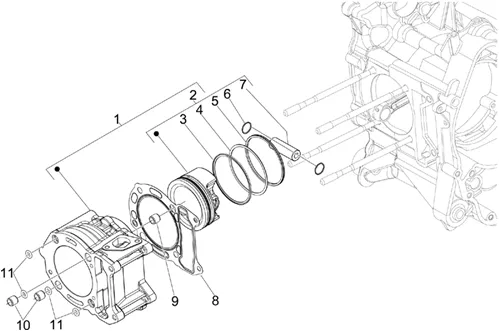

Groupe cylindre-piston-axe
Search
CYLINDER PISTON OEM PIAGGIO 300 MP3, BEVERLY, X7, VESPA GTS/GILERA 300 NEXUS/APRILIA 300 ATLANTIS, SPORT-CITY, SR-MAX, SCARABEO 2018 <-876457

1
P2R reference P2R reference 70610
Maker reference Maker reference 876457

CYLINDER PISTON OEM PIAGGIO 300 MP3, BEVERLY, X7, VESPA GTS/GILERA 300 NEXUS/APRILIA 300 ATLANTIS, SPORT-CITY, SR-MAX, SCARABEO 2018 <-876457

More information

Quantity required : 1

PISTON OEM (CAT-1) PIAGGIO 300 MP3, YOURBAN, BEVERLY, CARNABY, VESPA GTS, X7/GILERA 300 NEXUS/APRILIA 300 ATLANTIC, SPORT-CITY, SR-MAX, SCARABEO-8764580001

2
P2R reference P2R reference 70611
Maker reference Maker reference 8764580001

PISTON OEM (CAT-1) PIAGGIO 300 MP3, YOURBAN, BEVERLY, CARNABY, VESPA GTS, X7/GILERA 300 NEXUS/APRILIA 300 ATLANTIC, SPORT-CITY, SR-MAX, SCARABEO-8764580001

More information

Quantity required : 1

PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580002-

2
P2R reference P2R reference 70612
Maker reference Maker reference 8764580002

PISTON OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 300 CC-8764580002

More information

Quantity required : 1

PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580003-

2
P2R reference P2R reference 70613
Maker reference Maker reference 8764580003

PISTON (CAT-3) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 300 CC-8764580003

More information

Quantity required : 1

PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580004-

2
P2R reference P2R reference 70614
Maker reference Maker reference 8764580004

PISTON OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 300 CC-8764580004

More information

Quantity required : 1

874958 - SEGMENT

3
P2R reference P2R reference 70560
Maker reference Maker reference 874958

874958 - SEGMENT

More information

Quantity required : 1

PISTON RING RACLEUR D'HUILE 75X2. 5 OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 <-B015161

3
P2R reference P2R reference 94618
Maker reference Maker reference B015161

PISTON RING RACLEUR D'HUILE 75X2. 5 OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 <-B015161

More information

Quantity required : 1

874960-PISTON RING

4
P2R reference P2R reference 70561
Maker reference Maker reference 874960

874960-PISTON RING

More information

Quantity required : 1

PISTON RING DE LAMP (75X1. 5) OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 <-B015159

4
P2R reference P2R reference 94616
Maker reference Maker reference B015159

PISTON RING DE LAMP (75X1. 5) OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 <-B015159

More information

Quantity required : 1

PISTON RING RACLEUR D'HUILE 75X2. 5 OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 <-B015161

5
P2R reference P2R reference 94618
Maker reference Maker reference B015161

PISTON RING RACLEUR D'HUILE 75X2. 5 OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 <-B015161

More information

Quantity required : 1

PISTON RING INTERMEDIAIRE (75X1. 2) OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 <-B015160

5
P2R reference P2R reference 94617
Maker reference Maker reference B015160

PISTON RING INTERMEDIAIRE (75X1. 2) OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 <-B015160

More information

Quantity required : 1

CLIPS/CIRCLIPS PISTON OEM PIAGGIO 300 COMMON A LA RANGE-875096

6
P2R reference P2R reference 70571
Maker reference Maker reference 875096

CLIPS/CIRCLIPS PISTON OEM PIAGGIO 300 COMMON A LA RANGE-875096

More information

Quantity required : 2

SHAFT OF PISTON OEM PIAGGIO 300 MP3, BEVERLY, GTS-875005

7
P2R reference P2R reference 70569
Maker reference Maker reference 875005

SHAFT OF PISTON OEM PIAGGIO 300 MP3, BEVERLY, GTS-875005

More information

Quantity required : 1

CYLINDER BASE GASKET DE CYLINDER (0, 4MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875112

8
P2R reference P2R reference 70574
Maker reference Maker reference 875112

CYLINDER BASE GASKET DE CYLINDER (0, 4MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875112

More information

Quantity required : 1

CYLINDER BASE GASKET DE CYLINDER (0, 6MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875113

8
P2R reference P2R reference 70575
Maker reference Maker reference 875113

CYLINDER BASE GASKET DE CYLINDER (0, 6MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875113

More information

Quantity required : 1

CYLINDER BASE GASKET DE CYLINDER (0, 8MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875114

8
P2R reference P2R reference 70576
Maker reference Maker reference 875114

CYLINDER BASE GASKET DE CYLINDER (0, 8MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875114

More information

Quantity required : 1

PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916

9
P2R reference P2R reference 66142
Maker reference Maker reference 277916

PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916

More information

Quantity required : 2

PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957

10
P2R reference P2R reference 72697
Maker reference Maker reference B015957

PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957

More information

Quantity required : 2

O RING OF CYLINDER OEM PIAGGIO COMMON A TOUTE LA RANGE 125-250 MAXI SCOOTER-B017342

11
P2R reference P2R reference 72764
Maker reference Maker reference B017342

O RING OF CYLINDER OEM PIAGGIO COMMON A TOUTE LA RANGE 125-250 MAXI SCOOTER-B017342

More information

Quantity required : 4
