Vehicle Exploded View - VESPA VESPA GTS 125 ABS E5 Super Sport-SuperTech 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

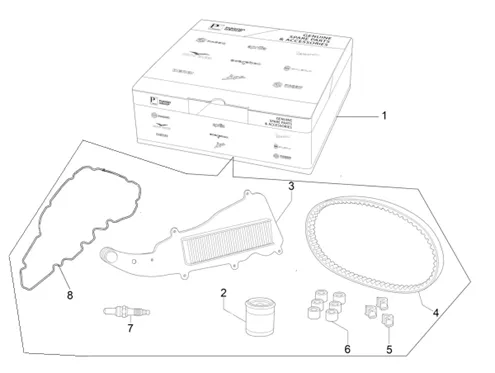

Maintenance : 07.01 COMPLETE WEAR AND MAINTENANCE KIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1289/Vespa_GTS_125_ABS_E5_Super_Sport-SuperTech_2022_07.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/8/9/8/4/img/218984.jpg)
1 |
KIT ENTRETIEN MAXI SCOOTER OEM PIAGGIO 125 VESPA GTS SUPER-SUPERSPORT 2022 > (WITHOUT BRAKE PADS)-1R000602 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
2 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/3/2/3/img/142323.jpg)
3 |
ELEMENT DE AIR FILTER OEM PIAGGIO 125-300 VESPA GTS 2016 >-1A007327 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/6/5/img/162765.jpg)
4 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 MEDLEY 2016 >, 125 VESPA GTS 2016 > APRILIA 125 SR GT COMPACT 2021 >-1A011455 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/8/7/1/img/203871.jpg)
5 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/0/8/img/195808.jpg)
6 |
GALET/ROLLER OEM PIAGGIO 125 SR GT COMPACT APRILIA/VESPA GTS/LX/946 (SOLD INDIVIDUALLY)-CM308502 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/9/1/img/195791.jpg)
7 |
SPARK PLUG IRIDIUM LMAR8AI-8 OEM PIAGGIO 125 GTS VESPA 2022 >/125-200 SR GT COMPACT 2021 >-1A020263 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/4/0/img/146240.jpg)
8 |
GASKET OF HOUSING AIR FILTER OEM PIAGGIO VESPA GTS 125/150/300 GTV 300-1A006644 More informationQuantity required : 1 |
