Vehicle Exploded View - VESPA VESPA GTS 125 ABS E5 Super Sport-SuperTech 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

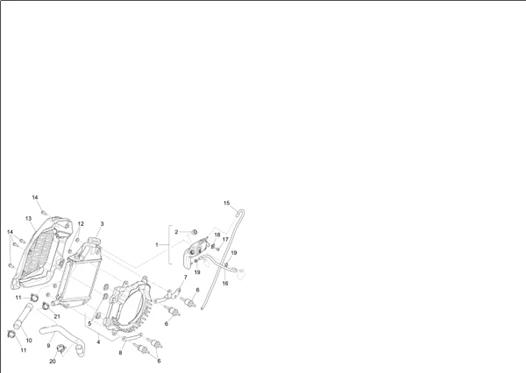

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1289/Vespa_GTS_125_ABS_E5_Super_Sport-SuperTech_2022_02.55.png)
1 |
1B006135 TANK DE COOLING More informationQuantity required : 1 |
||||||
|
2 |
1B010833-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/6/7/img/146267.jpg)
3 |
RADIATOR WATER OEM PIAGGIO 125 MEDLEY, VESPA GTS 2016 >-1A017507 More informationQuantity required : 1 |
||||||
|
4 |
1A007893-PRISE AIR LEFT More informationQuantity required : 1 |
||||||
|
5 |
1A003988-PLATE More informationQuantity required : 3 |
||||||
|
6 |
1A021966R-RADIATOR BRACKET SPACER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/7/9/img/195879.jpg)
7 |
BRACKET RADIATOR UPPER OEM PIAGGIO 125 GTS 2022 >/125 SR GT COMPACT APRILIA 2021 >-1A017066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/8/0/img/195880.jpg)
8 |
BRACKET RADIATOR LOWER OEM PIAGGIO 125 GTS 2022 >/125 SR GT COMPACT APRILIA 2021 >-1A017430 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/8/1/img/195881.jpg)
9 |
HOSE/HOSE WATER PUMP RADIATOR OEM PIAGGIO 125 GTS 2022/SR GT COMPACT APRILIA 2021 >-1A019402 More informationQuantity required : 1 |
||||||
|
10 |
1A006075-HOSE WATER More informationQuantity required : 1 |
||||||
|
11 |
CM226910-CLAMP FBS 24/12 More informationQuantity required : 2 |
||||||
|
12 |
874558-NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/4/7/7/img/174477.jpg)
13 |
PROTECTOR RADIATOR OEM PIAGGIO 125 MEDLEY 2020 >, VESPA GTS 2021 >-1A019945 More informationQuantity required : 1 |
||||||
|
14 |
1A006359-SCREW M6X16 More informationQuantity required : 4 |
||||||
|
15 |
CM001444-HOSE RENIFLARD More informationQuantity required : 1 |
||||||
|
16 |
CM278701-FUEL HOSE L: 280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
17 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
19 |
CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901 More informationQuantity required : 2 |
||||||
|
20 |
CM226911-CLAMP FBS 26/12 More informationQuantity required : 1 |
||||||
|
21 |
CM226903-CLAMP More informationQuantity required : 1 |
