Vehicle Exploded View - VESPA VESPA GTS 125 ABS E5 Super Sport-SuperTech 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

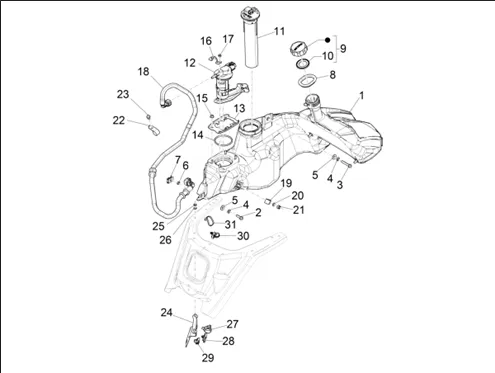

Châssis - parties plastiques - carrosseries : 02.47 RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1289/Vespa_GTS_125_ABS_E5_Super_Sport-SuperTech_2022_02.47.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/4/6/img/146346.jpg)
1 |
TANK FUEL OEM PIAGGIO 125 VESPA GTS 2016 >-1B003312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
3 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
5 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 3 |
||||||
6 |
623162-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
8 |
1B004806-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/8/img/68308.jpg)
9 |
CAP FUEL TANK OEM PIAGGIO COMMON A LA RANGE-656022 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/7/img/68307.jpg)
10 |
GASKET CAP DE TANK OEM PIAGGIO COMMON A LA RANGE-656021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/6/7/1/img/146671.jpg)
11 |
JAUGE A FUEL OEM PIAGGIO 125 GTS 2017 >-CM025723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/4/7/4/img/174474.JPG)
12 |
PUMP A FUEL OEM VESPA 125 GTS SUPER/SUPERSPORT 2021 >-1D003431 More informationQuantity required : 1 |
||||||
|
13 |
1B003873-FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/1/8/img/139918.jpg)
14 |
GASKET PUMP A FUEL OEM PIAGGIO THREE-WHEELER APE CALESSINO 2017 >/125 GTS 2016 > 2021-1B002841 More informationQuantity required : 1 |
||||||
|
15 |
2419376-NUT BRIDÃ More informationQuantity required : 4 |
||||||
|
16 |
1B004048-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
17 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 2 |
||||||
|
18 |
1B003568R-HOSE FUEL More informationQuantity required : 1 |
||||||
|
19 |
1B001615-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
20 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
21 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138 More informationQuantity required : 1 |
||||||
|
22 |
1B004489-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
23 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 1 |
||||||
|
24 |
1B003527-BRACKET More informationQuantity required : 1 |
||||||
|
25 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 2 |
||||||
|
26 |
003055-WASHER More informationQuantity required : 2 |
||||||
|
27 |
CM006911-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/1/2/img/86212.jpg)
28 |
CLIP DE MAINTIEN OEM PIAGGIO COMMON A LA RANGE-641599 More informationQuantity required : 1 |
||||||
|
29 |
1D000129-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
30 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
31 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
