Vehicle Exploded View - VESPA VESPA GTS 125 4T E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

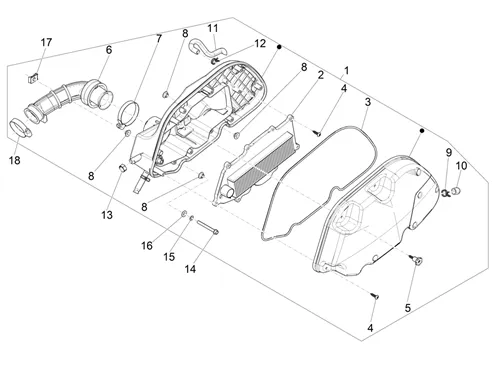

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/971/Vespa_GTS_125_4T_E5_ABS_2021_(EMEA)_01.45.png)
1 |
1A018827 AIR CLEANER ASSEMBLY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/3/2/3/img/142323.jpg)
2 |
ELEMENT DE AIR FILTER OEM PIAGGIO 125-300 VESPA GTS 2016 >-1A007327 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/4/0/img/146240.jpg)
3 |
GASKET OF HOUSING AIR FILTER OEM PIAGGIO VESPA GTS 125/150/300 GTV 300-1A006644 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
4 |
SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958 More informationQuantity required : 16 |
||||||
|
5 |
1A006715-BOULE More informationQuantity required : 2 |
||||||
|
6 |
1A018540 MANIFOLD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
7 |
CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188 More informationQuantity required : 1 |
||||||
|
8 |
1A006247-HUB More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
9 |
CLAMP HOSE (D13) COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM002910 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/1/img/68701.jpg)
10 |
PURGEUR HOUSING DE AIR FILTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 4T ET MAXI SCOOTER-827831 More informationQuantity required : 1 |
||||||
|
11 |
1A009072-HOSE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
12 |
HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
13 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/3/img/70533.jpg)
14 |
SCREW FLANGE TH (6X55) OEM PIAGGIO COMMON A LA RANGE-874552 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
15 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
16 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
18 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
