Vehicle Exploded View - VESPA VESPA GTS 125 4T E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

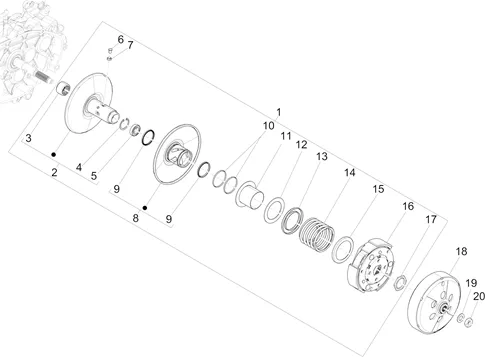

Moteur : 01.14 POULIE ENTRAINEE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/971/Vespa_GTS_125_4T_E5_ABS_2021_(EMEA)_01.14.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/6/6/img/162766.jpg)
1 |
PULLEY WITH CLUTCH COMPLETE OEM PIAGGIO 125 MEDLEY 2020 >/GTS 10/2019 >/SR GT APRILIA 2021 >-CM288402 More informationQuantity required : 1 |
||||||
2 |
1A007072-HALF PULLEY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/8/img/73678.jpg)
3 |
CLIPS/CIRCLIPS CORRECTEUR DE COUPLE OEM PIAGGIO FLY 125-150, LIBERTY 125-150, MP3 125-250-300-400-500/125 VESPA LX, GTS, VESPA-S-006628 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/3/img/68523.jpg)
4 |
CAGE A AIGUILLES (20X29X18) DE TORQUE DRIVER OF TORQUE MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-82518R More informationQuantity required : 1 |
||||||
|
5 |
1A002689-BEARING More informationQuantity required : 1 |
||||||
|
6 |
B014466-PIVOT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/3/img/66393.jpg)
7 |
BUSH DE PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE-431091 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/2/7/img/139527.jpg)
8 |
HALF PULLEY MOBILE OEM PIAGGIO 125 MEDLEY, GTS, MYMOOVER 2016 >/125 SR GT COMPACT 2021 >-1A003430 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/7/img/66237.jpg)
9 |
289950-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/1/img/66231.jpg)
10 |
GASKET CLUTCH OEM PIAGGIO 50-125 COMMON A LA RANGE-289840 More informationQuantity required : 2 |
||||||
|
11 |
1A002035-BUSH More informationQuantity required : 1 |
||||||
|
12 |
1A002038-SCREW More informationQuantity required : 1 |
||||||
|
13 |
1A002036-COUPELLE More informationQuantity required : 1 |
||||||
|
14 |
1A003435-SPRING More informationQuantity required : 1 |
||||||
|
15 |
1A002037-COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/6/7/img/162767.jpg)
16 |
CLUTCH OEM PIAGGIO 125 MEDLEY 2020 >/GTS 10/2019 >/SR GT APRILIA 2021 >-CM288502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/9/img/66239.jpg)
17 |
NUT CLUTCH OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-289955 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/4/3/0/img/174430.jpg)
18 |
BELL/TAMBOUR CLUTCH OEM PIAGGIO 125 MEDLEY 2020 >/GTS 10/2019 >/SR GT APRILIA 2021 >-1A010971 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/2/img/66132.jpg)
19 |
WASHER (12X22X1) OEM PIAGGIO COMMON A LA RANGE-274246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/4/9/img/72749.jpg)
20 |
NUT PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE-B016992 More informationQuantity required : 1 |
