Vehicle Exploded View - VESPA VESPA GTS 125 4T E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

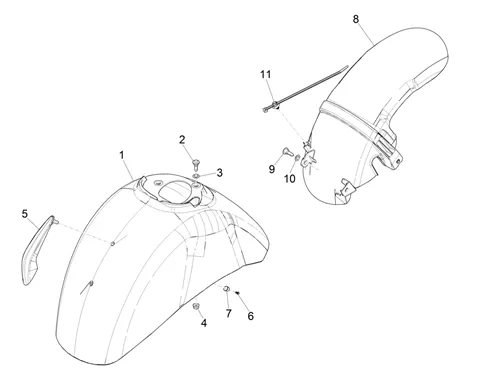

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/971/Vespa_GTS_125_4T_E5_ABS_2021_(EMEA)_02.33.png)
1 |
65102900G03 FRONT FENDER More informationQuantity required : 1 |
|||||||||
|
1 |
65102900G01 FRONT FENDER More informationQuantity required : 1 |
|||||||||
|
1 |
65102900DK-MUDGUARD More informationQuantity required : 1 |
|||||||||
|
1 |
65102900A11 FRONT FENDER More informationQuantity required : 1 |
|||||||||
|
1 |
65102900VK-MUDGUARD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/8/4/img/87184.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 125-250-300 VESPA GTS 2022 < UNPAINTED READY TO PAINT-651029 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/1/5/img/86815.jpg)
2 |
SCREW CRUCIFORME (6X25) WITH ROD OEM PIAGGIO COMMON A LA RANGE-648294 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
4 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/9/6/img/156096.jpg)
5 |
CRETE DE FRONT MUDGUARD (L159) CHROME OEM PIAGGIO 125-300 GTS 2018 >-1B005785 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
6 |
SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
7 |
CAPSULE OF FITTING KIT FAIRING OEM PIAGGIO COMMON A LA RANGE-192598 More informationQuantity required : 2 |
|||||||||
|
8 |
1B003707 - GARDE-BOUE AR. More informationQuantity required : 1 |
|||||||||
|
8 |
1B011653-GUARD-MUD AR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
9 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 1 |
|||||||||
|
10 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
11 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 1 |
|||||||||
