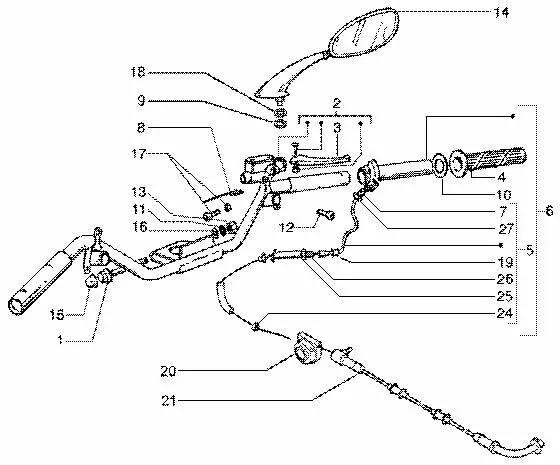

Guidon : T39 PIECES COMPOSANT LE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/709/Vespa_ET4_150_Leader_1998-2005_T39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
1 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/9/4/img/79694.jpg)
2 |
BRAKE MASTER CYLINDER RIGHT OEM PIAGGIO 50-125 LIBERTY PTT 2005 </VESPA VINTAGE ET2, ET4-56008R More informationQuantity required : 1 |
||||||
3 |
494948 - LEVIER FREIN AV ET4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/4/1/5/img/79415.jpg)
3 |
FRONT BRAKE LEVER- HENG-TONG "PIAGGIO GENUINE PART" 50-125 LIBERTY 1998>2004, 50 VESPA ET2, 125 VESPA ET4 -497039- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/8/img/66998.jpg)
4 |
GRIP REVETEMENT LEFT OEM PIAGGIO COMMON A LA RANGE 2008 <-560582 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/5/1/8/img/95518.jpg)
5 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO 125 VESPA ET4-CM065907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/4/1/5/img/95415.jpg)
6 |
THROTTLE HANDLE "PIAGGIO GENUINE PART" 125 VESPA ET4 -CM060912 More informationQuantity required : 1 |
||||||
|
6 |
CM060918 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/8/img/66078.jpg)
7 |
TENDEUR/SCREW OF REGLAGE CABLE (6X16) OEM PIAGGIO COMMON A LA RANGE-269145 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
8 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
|
9 |
562401 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.jpg)
10 |
BUSH GRIP THROTTLE 38, 3X27X1, 2 COMMON A LA RANGE PIAGGIO-6562923 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
11 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
12 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
13 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/9/5/img/81595.jpg)
14 |
RIGHT MIRROR OEM PIAGGIO 50 VESPA ET2, 125 VESPA ET4 1998 > 2003-581555 More informationQuantity required : 1 |
||||||
|
15 |
128009-CAPSULE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
16 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
17 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/5/img/63795.jpg)
18 |
CLPIS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-005955 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/4/img/67044.JPG)
19 |
563989-GUIDE CABLE More informationQuantity required : 1 |
||||||
|
20 |
BOITE UNION |
||||||
|
21 |
tr.gaz.desd. |
||||||
|
22 |
582873 - MANCHON More informationQuantity required : 1 |
||||||
|
23 |
583327 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/6/img/63766.jpg)
24 |
NUT (6X0. 75) OEM PIAGGIO COMMON A LA RANGE-002613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
25 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
26 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/6/img/65746.jpg)
26 |
EMBOUT DE GAINE OEM PIAGGIO COMMON A LA RANGE-147511 More informationQuantity required : 1 |
