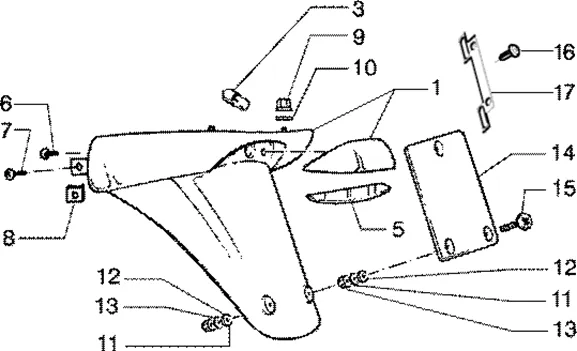

Châssis : T43 PROTECTION POSTÉRIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/709/Vespa_ET4_150_Leader_1998-2005_T43.PNG)
1 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" VESPA 125 ET4 RAW TO BA PAINTED -5736405- More informationQuantity required : 1 |
||||||
|
1 |
57364000F2 - BAVETTE ARR More informationQuantity required : 1 |
||||||
|
1 |
57364000V8 - BAVETTE AR ET4 125 BACCARAT 381 More informationQuantity required : 1 |
||||||
|
1 |
57364000VA - BAVETTE ARR More informationQuantity required : 1 |
||||||
|
1 |
5736405060 - BAVETTE AR ET4 125 VERT 336 More informationQuantity required : 1 |
||||||
|
1 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" VESPA 125 ET4 WHITE 913 -5736405066- More informationQuantity required : 1 |
||||||
|
1 |
BAVETTE AR ET4 125 BLANC 724 |
||||||
|
1 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" VESPA 125 ET4 BLACK 94 -5736405090- More informationQuantity required : 1 |
||||||
|
1 |
MUD FLAP REAR OEM PIAGGIO VESPA 125 ET4 GREY 729-5736405095 More informationQuantity required : 1 |
||||||
|
1 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" 125 ET4 PLATINIUM GREY 686 -57364050A7- More informationQuantity required : 1 |
||||||
|
1 |
57364050B2 - BAVETTE AR ET4 125 PERLE 693 More informationQuantity required : 1 |
||||||
|
1 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" VESPA 125 ET4 BLUE 251 -57364050D1- More informationQuantity required : 1 |
||||||
|
1 |
57364050F1 - BAVETTE AR 523 More informationQuantity required : 1 |
||||||
|
1 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" VESPA 125 ET4 RED 876 -57364050R2- More informationQuantity required : 1 |
||||||
|
1 |
Protection A.R. |
||||||
|
1 |
57364050R7 - BAVETTE AR ET4 125 ROUGE DRAGON 894 More informationQuantity required : 1 |
||||||
|
1 |
BAVETTE AR |
||||||
|
1 |
|
||||||
|
1 |
BAVETTE AR ET4 125 VERT PISTACHE 396 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/1/7/img/77817.jpg)
5 |
294835 - TRANSPARENT More informationQuantity required : 1 |
||||||
|
6 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
7 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
8 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
9 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
10 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
11 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
12 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
13 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
14 |
DOOR PLATE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584884 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
15 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
16 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/1/img/67321.jpg)
17 |
RALLONGE FOR PORTEPLAQUE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584877 More informationQuantity required : 2 |
