Vehicle Exploded View - VESPA VESPA ET4 150 Leader 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

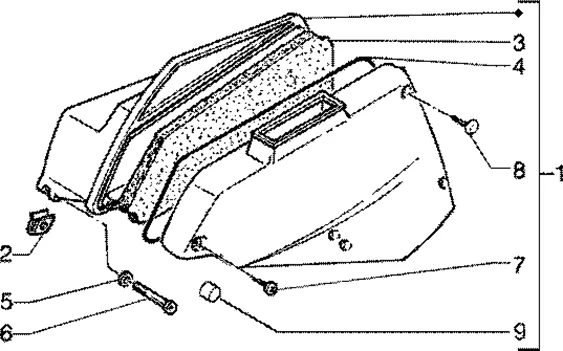

Châssis : T22 FILTRE A AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/709/Vespa_ET4_150_Leader_1998-2005_T22.PNG)
1 |
827124-AIR FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
2 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/2/img/157082.jpg)
3 |
AIR FILTER (PREMIUM) OEM PIAGGIO SKIPPER 4T 1998 > 2005-4874010P More informationQuantity required : 1 |
||||||
|
4 |
487402 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
5 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
6 |
SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
7 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/3/img/66573.jpg)
8 |
BUTTON/POMMEAU OF FASTENING DE AIR FILTER OEM PIAGGIO COMMON A LA RANGE-479132 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
9 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 4 |
