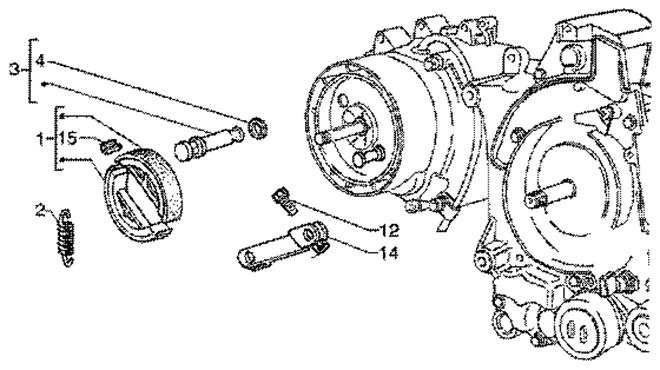

Vehicle Exploded View - VESPA VESPA ET4 125 Leader 1998-2005 VESPA

Moteur : T18 LEVIER DU FREIN
Levier du frein
Search
BRAKE SHOE SET REAR OEM PIAGGIO 50 ZIP 2T AR, 50-125 VESPA LX AR, TYPHOON, NRG, LYBERTY/GILERA 50 STALKER, RUNNER (D. 105)-82907R

1
P2R reference P2R reference 68814
Maker reference Maker reference 82907R

BRAKE SHOE SET REAR OEM PIAGGIO 50 ZIP 2T AR, 50-125 VESPA LX AR, TYPHOON, NRG, LYBERTY/GILERA 50 STALKER, RUNNER (D. 105)-82907R

More information

Quantity required : 1

SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384

2
P2R reference P2R reference 68017
Maker reference Maker reference 647384

SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384

More information

Quantity required : 2

5641365 - LEVIER DU FREIN

3
P2R reference P2R reference 67048
Maker reference Maker reference 5641365

5641365 - LEVIER DU FREIN

More information

Quantity required : 1

564134 - O-RING

4
P2R reference P2R reference 67047
Maker reference Maker reference 564134

564134-O-RING

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

12
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 1

564215 - LEVIER DU FREIN

14
P2R reference P2R reference 67049
Maker reference Maker reference 564215

564215-LEVER DU BRAKE

More information

Quantity required : 1

LEVER DE CONTROL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-833428

14
P2R reference P2R reference 69060
Maker reference Maker reference 833428

LEVER DE CONTROL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-833428

More information

Quantity required : 1

266724 - PLAQUE

15
P2R reference P2R reference 66055
Maker reference Maker reference 266724

266724-PLATE

More information

Quantity required : 1
