Vehicle Exploded View - VESPA VESPA ET4 125 Leader 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

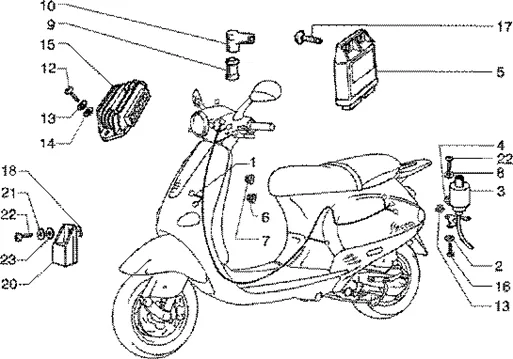

Connexions électriques : T41 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/711/Vespa_ET4_125_Leader_1998-2005_T41.PNG)
1 |
Faisc. de cábles |
|||||||||
|
1 |
638604 - FAISCEAU CABLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/2/0/img/77820.jpg)
1 |
CONTACTEUR/SWITCH CODE HEADLAMP OEM PIAGGIO 125 VESPA GTS, 50-125 VESPA LX, VESPA-S-294877 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/2/img/65342.jpg)
2 |
WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/0/4/img/77804.jpg)
2 |
BUTTON/SWITCH CLIGNOTANTS OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 125 VESPA GTS-294723 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
2 |
BATTERY 12V 9AH YB9-B OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY-584810 More informationQuantity required : 1 |
|||||||||
|
2 |
497410 - BATTERIE FIAMM 12V/9AH FTX9-BS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/4/img/68574.jpg)
3 |
BOBINE IGNITION OEM PIAGGIO 125 BEVERLY, LIBERTY, SUPER HEXAGON, VESPA GTS, VESPA LX/APRILIA 125 ATLANTIC, SPORT-CITY, SCARABEO 2010 <-82597R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/7/img/67177.jpg)
3 |
BUTTON/SWITCH AVERTISSEUR OEM PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT LEFT-58058R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
3 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
|||||||||
|
4 |
581051 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
4 |
SPRING D'ARRET SERRRURE OEM PIAGGIO COMMON A TOUTE LA RANGE-298838 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
4 |
SCREW TFR (6X15) OEM PIAGGIO COMMON A LA RANGE-015558 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/4/img/67304.jpg)
5 |
CDI OEM PIAGGIO 125 LIBERTY, FLY, SKIPPER WITH ANTIDEMARRAGE 2006 <-584612 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
5 |
BUTTON DEMARRAGE OEM PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO-58057R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
6 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
6 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/0/3/img/77703.jpg)
6 |
BUTTON/CONTACTEUR ECLAIRAGE OEM PIAGGIO 50-125 LIBERTY, SFERA, 125 VESPA GTS 2017 >-293571 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/4/1/img/84841.jpg)
6 |
COVER/CAP HANDLEBAR COVER OEM PIAGGIO 50-125 LX VESPA 2013 <-623512 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
7 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/7/img/67237.jpg)
7 |
ANTENNE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER (FRONT 2012)-1D003415R More informationQuantity required : 1 |
|||||||||
|
8 |
WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/4/6/img/151346.jpg)
8 |
EBAUCHE DE CLE GIOBERT (MODELE WITH TRANSPONDEUR) OEM PIAGGIO VESPA 125-250-300 GTS, 125 VESPA LX, PRIMAVERA, SPRINT-1B004718 More informationQuantity required : 1 |
|||||||||
|
9 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/8/img/66508.jpg)
9 |
CAPUCHON ISOLANT ANTI PARASITE OEM PIAGGIO COMMON A LA RANGE-436919 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/2/img/67172.jpg)
9 |
AVERTISSEUR OEM PIAGGIO 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58034R More informationQuantity required : 1 |
|||||||||
|
9 |
CM071804 - AVERTISSEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/0/3/img/77603.jpg)
10 |
DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2005, 125 VESPA PX-290402 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/1/img/67181.jpg)
10 |
DOOR-FUSIBLES OEM PIAGGIO COMMON A LA RANGE-580653 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/6/img/66266.jpg)
10 |
ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-293845 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/9/img/70969.jpg)
10 |
ANTIPARASITE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-969348 More informationQuantity required : 1 |
|||||||||
|
11 |
580075-HOSE RENIFLARD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
11 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
|||||||||
|
11 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
|||||||||
|
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/8/1/9/img/90819.jpg)
12 |
SET OF CLES WITH BARILLET OEM PIAGGIO 125 LIBERTY 2014, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >, VESPA-S 2012 > 3V-1B005661 More informationQuantity required : 1 |
|||||||||
|
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/0/3/img/80203.jpg)
12 |
573225 - BARILLET A CLEF More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.jpg)
13 |
241937 - ECROU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
13 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/2/1/5/img/198215.jpg)
14 |
IGNITION SWITCH OEM PIAGGIO 50 ZIP 1998 >, NRG POWER 2005 >, LIBERTY 1998 > 50-125 FLY 2005 >, VESPA LX 2005 >,/GILERA 50 RUNNER 2000 >/APRILIA 50 SR MOTARD 2012 > (COTE HARNESS)-1D002436 More informationQuantity required : 1 |
|||||||||
|
14 |
IGNITION SWITCH OEM PIAGGIO 50 ZIP 1998 >, NRG POWER 2005 >, LIBERTY 1998 > 50-125 FLY 2005 >, VESPA LX 2005 >,/GILERA 50 RUNNER 2000 >/APRILIA 50 SR MOTARD 2012 > (COTE HARNESS)-1D002436 More informationQuantity required : 1 |
|||||||||
|
15 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
15 |
BODY DE LOCK OEM PIAGGIO 50 ZIP, NRG, TYPHOON, 50-125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO, X8, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9-1B002607 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
16 |
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
16 |
BLOC LOCK SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY-1B006291 More informationQuantity required : 1 |
|||||||||
|
17 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
|||||||||
|
17 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
17 |
SPRING D'ARRET DE IGNITION SWITCH OEM PIAGGIO COMMON A TOUTE LA RANGE-253937 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
18 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
18 |
GASKET OF LOCK OEM PIAGGIO COMMON A TOUTE LA RANGE-298731 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/8/img/67258.jpg)
20 |
RELAIS STARTER MOTOR 12V 30A OEM PIAGGIO COMMON A TOUTE LA RANGE-58246R More informationQuantity required : 1 |
|||||||||
|
21 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
22 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
|||||||||
|
23 |
013755-WASHER More informationQuantity required : 1 |
|||||||||
