Vehicle Exploded View - VESPA VESPA ET4 125 Leader 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

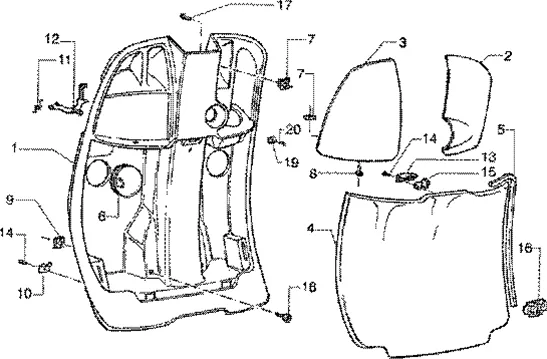

Châssis : T27 COFFRE A L'AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/711/Vespa_ET4_125_Leader_1998-2005_T27.PNG)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/6/2/img/94962.jpg)
1 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4 1998>2004 -CM0036025- More informationQuantity required : 1 |
||||||
|
1 |
CM00360200D9 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
Coffre |
||||||
|
1 |
Coffre |
||||||
|
1 |
Coffre |
||||||
|
1 |
CM0036025060 - COFFRE AVT 336 More informationQuantity required : 1 |
||||||
|
1 |
CM0036025090-UNDERSEAT COMPARTMENT More informationQuantity required : 1 |
||||||
|
1 |
CM0036025095 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM00360250A7 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM00360250B2 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM00360250D1 - COFFRE AVT 251 More informationQuantity required : 1 |
||||||
|
1 |
CM00360250F1 - COFFRE AVT 523 More informationQuantity required : 1 |
||||||
|
1 |
Coffre |
||||||
|
1 |
CM00360250R3 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
CM00360250R7 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
COFFRE |
||||||
|
2 |
297277 - COTE COFFRE AV DROIT More informationQuantity required : 1 |
||||||
|
2 |
575424000L-COVER UNDERSEAT COMPARTMENT M04 BLUE More informationQuantity required : 1 |
||||||
|
2 |
5754240060 - CARENAGE More informationQuantity required : 1 |
||||||
|
2 |
CARENAGE |
||||||
|
2 |
57542400M2 - CARENAGE DROIT More informationQuantity required : 1 |
||||||
|
2 |
57542400M2 - CARENAGE DROIT More informationQuantity required : 1 |
||||||
|
3 |
297276 - COTE COFFRE AV GAUCH More informationQuantity required : 1 |
||||||
|
3 |
575425000L-COVER UNDERSEAT COMPARTMENT M04 BLUE More informationQuantity required : 1 |
||||||
|
3 |
5754250060 - CARENAGE More informationQuantity required : 1 |
||||||
|
3 |
CARENAGE |
||||||
|
3 |
57542500M2-FAIRING LEFT More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
|
4 |
82120000AA - PORTE COFFRE More informationQuantity required : 1 |
||||||
|
4 |
PORTE COFFRE |
||||||
|
4 |
PORTE COFFRE |
||||||
|
4 |
82120000V8 - PORTE COFFRE More informationQuantity required : 1 |
||||||
|
4 |
82120000V9 - PORTE COFFRE More informationQuantity required : 1 |
||||||
|
4 |
82120000VA - PORTE COFFRE More informationQuantity required : 1 |
||||||
|
4 |
8212005 - PORTE COFFRE AV BRUT More informationQuantity required : 1 |
||||||
|
4 |
8212005060 - PORTE 366 More informationQuantity required : 1 |
||||||
|
4 |
8212005066-DOOR 913 More informationQuantity required : 1 |
||||||
|
4 |
8212005087 - ABATTANT 724 More informationQuantity required : 1 |
||||||
|
4 |
8212005090 - PORTE COFFRE More informationQuantity required : 1 |
||||||
|
4 |
8212005095 - ABATTANT More informationQuantity required : 1 |
||||||
|
4 |
82120050A7-DOOR More informationQuantity required : 1 |
||||||
|
4 |
82120050B2 - PORTE PERLE More informationQuantity required : 1 |
||||||
|
4 |
82120050D1 - PORTE COFFRE AV BLEU COBALT More informationQuantity required : 1 |
||||||
|
4 |
82120050F1 - PORTE 523 More informationQuantity required : 1 |
||||||
|
4 |
82120050R2 - PORT.BAUL.** More informationQuantity required : 1 |
||||||
|
4 |
82120050R3 - ABATTANT More informationQuantity required : 1 |
||||||
|
4 |
82120050R7-DOOR More informationQuantity required : 1 |
||||||
|
4 |
PORTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/8/img/66298.jpg)
5 |
GASKET DOOR DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 50-125 FLY, VESPA LX, PRIMAVERA 2013 >, VESPA SPRINT 2014 >, 125-250-500 X9, BEVERLY-297275 More informationQuantity required : 1 |
||||||
|
6 |
294067 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
8 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/2/img/66022.jpg)
10 |
BRACKET MOUNTING DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-257614 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/3/img/66023.jpg)
11 |
SPRING DE LEVER DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX-257617 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/1/img/66281.jpg)
12 |
CROCHET OUVERTURE HATCH FRONT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX 2006 >-295528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/2/img/66002.jpg)
13 |
BRACKET LATCH DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-252420 More informationQuantity required : 1 |
||||||
|
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
14 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
15 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/9/1/img/67091.jpg)
15 |
PLATE LATCH DOOR DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX-573057 More informationQuantity required : 1 |
||||||
|
16 |
DECAL- ON FRONT BOOT - "PIAGGIO GENUINE PART" VESPA 125 ET4 -577125- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
17 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
18 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/2/img/66242.jpg)
19 |
BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/2/img/65802.jpg)
20 |
RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302 More informationQuantity required : 1 |
