Vehicle Exploded View - VESPA VESPA ET2 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

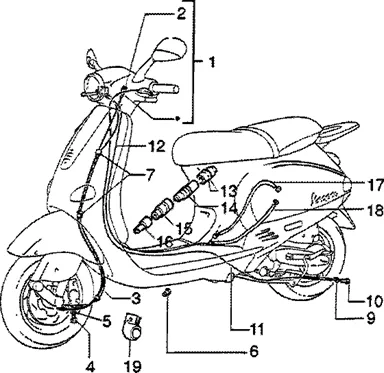

Transmisisons : T35 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/713/Vespa_ET2_50_1998-2005_T35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/7/2/img/79772.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50 ET2 1998 > 2004, 125 ET4 1998 > 2004-56116R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/0/4/img/79804.jpg)
2 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4, 125-250 HEXAGON -561806- More informationQuantity required : 1 |
||||||
3 |
563886-CANALISATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
4 |
SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
5 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 2 |
||||||
|
6 |
268172-ATTACHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
7 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
9 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
10 |
NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/6/9/img/89969.jpg)
11 |
CABLE/CONTROL/TRANSMISSION OF BRAKE REAR OEM PIAGGIO 50 VESPA LX 5005 >, VESPA-S 2005 >, ET2 1998 > 2004, SFERA 1998 > 2004/GILERA 50 RUNNER 1998 > 2004-665912 More informationQuantity required : 1 |
||||||
|
12 |
581883 - TR. GAZ. DESD. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/9/7/4/img/81974.jpg)
12 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (DE LA GRIP AU REPARTITEUR) OEM PIAGGIO 50 VESPA LX, VESPA-S-583870 More informationQuantity required : 1 |
||||||
|
12 |
TRANSMISSION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/1/6/img/82416.jpg)
12 |
THROTTLE TRANSMISSION CABLE "PIAGGIO GENUINE PART" 50 VESPA ET2 1998>2005 -598585 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/9/img/66109.jpg)
13 |
PROTECTOR DU REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271977 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/3/img/66083.jpg)
14 |
DEDOUBLEUR/REPARTITEUR OEM PIAGGIO 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (ENSEMBLE DE 3 PIECES-WITHOUT LES PROTECTIONS)-269571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/8/img/66108.jpg)
15 |
PROTECTOR DE REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/4/img/66084.jpg)
16 |
BUTEE DE GAINE DE REPARTITEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-269572 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/4/2/img/81842.jpg)
17 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE DU REPARTITEUR AU CARBU OEM PIAGGIO 50 VESPA ET2-582908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/5/1/img/79851.jpg)
18 |
OIL PUMP TRANSMISSION CABLE "PIAGGIO GENUINE PART" PIAGGIO 50 VESPA ET2 -562408- More informationQuantity required : 1 |
||||||
|
19 |
563872 - PATTES More informationQuantity required : 1 |
