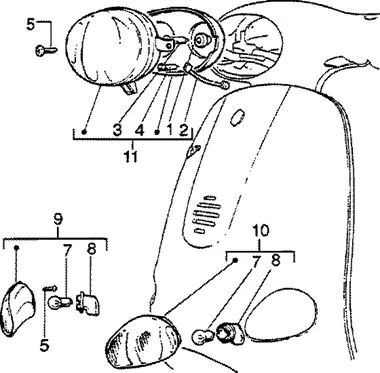

Connexions électriques : T36 PROJECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/713/Vespa_ET2_50_1998-2005_T36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/7/img/66267.jpg)
1 |
DOOR AMPOULE DE HEADLAMP OEM PIAGGIO APRILIA 50 RALLY 1995 > 2004/LIBERTY 50 2T 4T 1998 > 2005/VESPA 50 ET2 ET4 1998 > 2005-293880 More informationQuantity required : 1 |
||||||
2 |
294112-DOOR LAMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
3 |
AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
4 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
5 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
7 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/4/3/img/76943.jpg)
8 |
DOOR AMPOULE DE INDICATOR OEM PIAGGIO 50 ZIP, VESPA ET2, 125 VESPA ET4, HEXAGON, SKIPPER/GILERA 50-125 DNA-250521 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/1/0/img/77710.jpg)
9 |
FRONT RIGHT INDICATOR ORANGE OEM PIAGGIO 50 ET2, 125 ET4 1998 > 2005-293601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/0/9/img/77709.jpg)
10 |
FRONT LEFT INDICATOR ORANGE OEM PIAGGIO 50 ET2, 125 ET4 1998 > 2005-293600 More informationQuantity required : 1 |
||||||
|
11 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 50 VESPA ET2/LIBERTY 125 1998-2005-293599 More informationQuantity required : 1 |
