Vehicle Exploded View - VESPA VESPA ET2 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

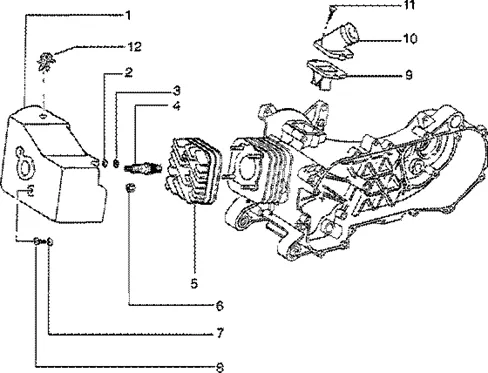

Moteur : T5 ENSEMBLE CULASSE-COIFFRE ET RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/713/Vespa_ET2_50_1998-2005_T5.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/6/4/img/69364.jpg)
1 |
COIFFE/COVER CYLINDER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-845692 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
2 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
3 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/2/img/66522.jpg)
4 |
SPARK PLUG CHAMPION P2M OEM PIAGGIO RANGE SCOOTER 50 CC 1989 > 2005-438065 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/0/img/66520.jpg)
4 |
SPARK PLUG CHAMPION RN2C OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-438034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/4/img/66174.jpg)
5 |
CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-2865344 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/4/img/66194.jpg)
6 |
NUT/SPACER (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-288531 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
7 |
WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
8 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 2 |
||||||
|
8 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/2/img/68692_20251023155939.jpg)
9 |
CLAPET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T (N- FRAME CONSEILLE)-82775R More informationQuantity required : 1 |
||||||
10 |
RACCORD D'ADMISS. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/4/6/img/152746.jpg)
10 |
FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP, VESPA 50 LX, PRIMAVERA, VESPA-S, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SPORT-CITY, SR-1A008824 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
11 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
|
11 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
11 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
||||||
|
11 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
12 |
CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590 More informationQuantity required : 2 |
