Vehicle Exploded View - MOTO-GUZZI V9 850 Roamer 850 e4 ABS 2018-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

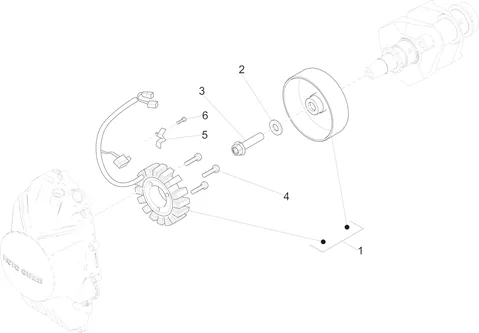

Moteur : 03.30 VOLANT MAGNÉTIQUE / ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/981/V9_Roamer_850_e4_ABS_2018-2020_(EMEA)_03.30.png)
1 |
1A011251 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
|
2 |
897478-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/3/img/69753.jpg)
3 |
SCREW TH (12X1, 25X50) DE ROTOR IGNITION OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V9-857206 More informationQuantity required : 1 |
||||||
|
4 |
1A014631 SCREW M6X35-DIN 7984 More informationQuantity required : 3 |
||||||
|
5 |
2A000115-PIASTRINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
6 |
SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212 More informationQuantity required : 1 |
