Vehicle Exploded View - MOTO-GUZZI V9 850 Roamer 850 e4 ABS 2018-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

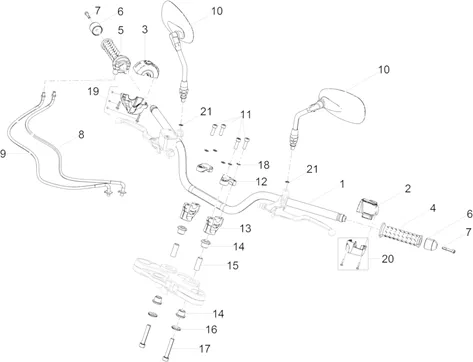

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/981/V9_Roamer_850_e4_ABS_2018-2020_(EMEA)_07.02.png)
1 |
2B001163-HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/7/9/7/img/203797.JPG)
2 |
DEVIATEUR/CONTACTEUR FEUX LEFT OEM PIAGGIO MOTO GUZZI V9 E4/E5-2D000671 More informationQuantity required : 1 |
||||||
|
2 |
DEVIATEUR/CONTACTEUR FEUX LEFT OEM PIAGGIO MOTO GUZZI V9 E4/E5-2D000671 More informationQuantity required : 1 |
||||||
|
3 |
2D000226-DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/6/img/71366.jpg)
4 |
REVETEMENT DE GRIP LEFT OEM APRILIA/MOTO GUZZI COMMUNA LAGAMME-AP8118579 More informationQuantity required : 1 |
||||||
|
5 |
2B002364-GRIP DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/6/7/img/126067.jpg)
6 |
HANDLEBAR END OEM PIAGGIO FOR MOTORCYCLE-GUZZI 940 BELLAGIO 2007 > 2013, 1200 GRISO 2007 > 2013, 750 NEVADA 2009 >, 750 V-7 2008 >-GU32602860 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/9/5/0/img/127950.jpg)
7 |
SCREW BTR (6X35) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B002195 More informationQuantity required : 2 |
||||||
|
8 |
2B002702-CABLE LATCH THROTTLE More informationQuantity required : 1 |
||||||
|
9 |
2B002701-CABLE OUVERTURE THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/6/8/img/99968_20260415164519.jpg)
10 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 2 |
||||||
|
10 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 2 |
||||||
|
11 |
GU98692425-SCREW M8X25 More informationQuantity required : 4 |
||||||
|
12 |
2B001148-CALIPER HANDLEBAR More informationQuantity required : 2 |
||||||
|
13 |
2B002471-CAVALIER INF. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
14 |
RUBBER OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8144222 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
15 |
SPACER (10, 1X14, 1X38) OEM PIAGGIO COMMON A LA RANGE-854827 More informationQuantity required : 2 |
||||||
|
16 |
2B002875-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
17 |
SCREW BTR (10X60) OEM PIAGGIO COMMON ALA RANGE-AP8150049 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
18 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
|
19 |
2D000163-COQUE More informationQuantity required : 1 |
||||||
|
20 |
2D000218-CAP More informationQuantity required : 1 |
||||||
|
21 |
GU91181003-SPACER 10, 25X20X4 More informationQuantity required : 2 |
