Vehicle Exploded View - MOTO-GUZZI V9 850 Roamer 850 e4 ABS 2018-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

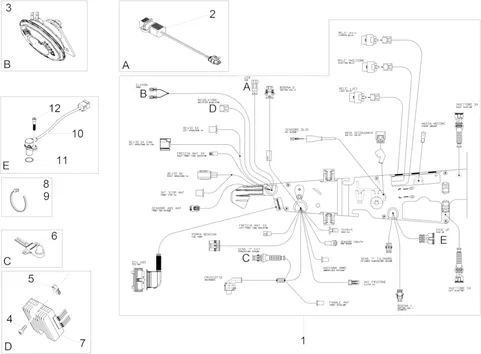

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/981/V9_Roamer_850_e4_ABS_2018-2020_(EMEA)_11.01.png)
1 |
2D000209-GRUPPO CAVI More informationQuantity required : 1 |
||||||
|
2 |
1D003323 - USB SOCKET More informationQuantity required : 1 |
||||||
|
3 |
2B000221-HORN More informationQuantity required : 1 |
||||||
|
4 |
AP8150377-SCREW TCB M 6 X 16 INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
6 |
SENSOR/DETECTEUR DE TEMPERATURE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO GUZZI-AP8124936 More informationQuantity required : 1 |
||||||
|
7 |
1D001549-REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
|
8 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 1 |
||||||
|
9 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 24 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/7/img/67817.jpg)
10 |
SENSOR IGNITION/PHASE TOURS OEM PIAGGIO 400 X-EVO, BEVERLY, 500 X9/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 850 V9/APRILIA 1000-1100 RSV-4, TUONO V4, 850 SRV, 400-500 ATLANTIC/GILERA 800 GP-6389915 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
11 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
|
12 |
GU98682314-SCREW TCEI M6X14 More informationQuantity required : 1 |
