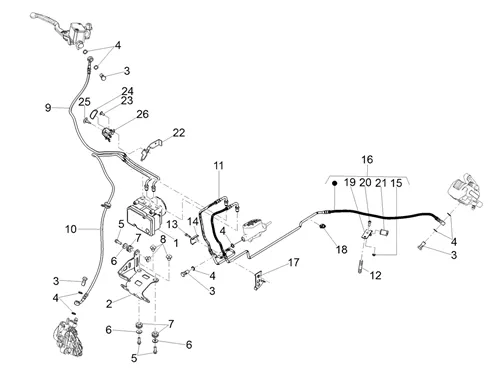

Système frein abs : 06.05 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/982/V9_Bobber_Sport_850_e4_ABS_2018-2019-2020_(EMEA)_06.05.png)
1 |
CENTRE OF BRAKE ABS OEM MOTO-GUZZI V7, V9 2017 >-2D000102 More informationQuantity required : 1 |
||||||
|
2 |
2B003056-PLATE BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
3 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
5 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
6 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
7 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
8 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 2 |
||||||
|
9 |
2B005889 TUBE More informationQuantity required : 1 |
||||||
|
10 |
2B002805-TUBE BRAKE More informationQuantity required : 1 |
||||||
|
11 |
HOSE/FLEXIBLE/HOSE OF BRAKE REAR OEM PIAGGIO MOTO-GUZZI 850 V9-2B002681 More informationQuantity required : 1 |
||||||
|
12 |
GU96451316-SCREW WITHOUT HEAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
13 |
SCREW BTR HEAD BOMBEE (4X16) OEM PIAGGIO COMMON A LA RANGE-AP8150493 More informationQuantity required : 1 |
||||||
|
14 |
2B001614-PIASTRINA FISSAGGIO TUBI BRAKE ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
15 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451 More informationQuantity required : 1 |
||||||
|
16 |
2B002806-TUBE PUMP-CENTRE More informationQuantity required : 1 |
||||||
|
17 |
2B001564-PLATE DI BRACKET CON P. I. More informationQuantity required : 1 |
||||||
|
18 |
AP8121882-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
19 |
GU03658330-CLAMP More informationQuantity required : 1 |
||||||
|
20 |
895709-SCREW More informationQuantity required : 1 |
||||||
|
21 |
GU03658201-BUSH More informationQuantity required : 1 |
||||||
|
22 |
2B004457-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
23 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 1 |
||||||
|
24 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
25 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 1 |
||||||
|
26 |
2B004458-PROTECTOR More informationQuantity required : 1 |
