Vehicle Exploded View - MOTO-GUZZI V9 850 Bobber Sport 850 e4 ABS 2018-2019-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

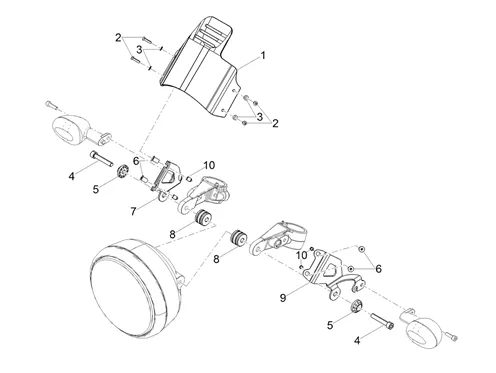

Carrosserie : 02.05 COUPOLE / PARE BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/982/V9_Bobber_Sport_850_e4_ABS_2018-2019-2020_(EMEA)_02.05.png)
1 |
2B005450 FAIRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
2 |
SCREW BTR HEAD BOMBEE (4X16) OEM PIAGGIO COMMON A LA RANGE-AP8150493 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
3 |
WASHER NYLON (4X9X0. 8)) OEM PIAGGIO COMMON A LA RANGE-AP8144565 More informationQuantity required : 4 |
||||||
|
4 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-GU98690445 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/3/img/46743.jpg)
5 |
BUSH SPACER DE SILENCER OEM APRILIA RSV4-AP8121199 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
6 |
RUBBER WITH INSERT (M4) OEM PIAGGIO COMMON A LA RANGE-AP8144564 More informationQuantity required : 4 |
||||||
|
7 |
2B005432 BRACKET More informationQuantity required : 1 |
||||||
|
8 |
2B002011-SPACER More informationQuantity required : 2 |
||||||
|
9 |
2B005448 BRACKET G. More informationQuantity required : 1 |
||||||
|
10 |
2B006038 CAP More informationQuantity required : 4 |
