Vehicle Exploded View - MOTO-GUZZI V9 850 Bobber Sport 850 e4 ABS 2018-2019-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

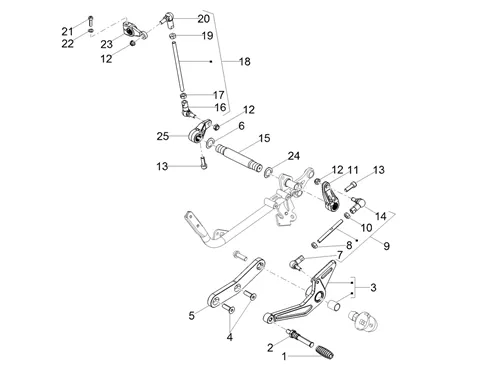

Moteur : 03.02 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/982/V9_Bobber_Sport_850_e4_ABS_2018-2019-2020_(EMEA)_03.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
1 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
||||||
2 |
2B004062-PIVOT LEVER BRAKE More informationQuantity required : 1 |
||||||
|
3 |
2B004053-LAVIER CONTROL CHANG. VIT. CPL. More informationQuantity required : 1 |
||||||
|
4 |
2B004112-SCREW FLANGE More informationQuantity required : 2 |
||||||
|
5 |
2B004043-PLAQ. R-FOOT G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
6 |
WASHER ELASTIC OEM MOTO GUZZI COMMON A LA RANGE-GU95129260 More informationQuantity required : 1 |
||||||
|
7 |
ROTULE SELECTEUR DE BOX (G) M6 OEM MOTO GUZZI-898397 More informationQuantity required : 1 |
||||||
|
8 |
GU03256800-DADO M6 More informationQuantity required : 1 |
||||||
|
9 |
2B004109-TIRANT More informationQuantity required : 1 |
||||||
|
10 |
GU92609206-NUT M6 More informationQuantity required : 1 |
||||||
|
11 |
2B004348-LAVIER CONTROL CHANG. VIT. More informationQuantity required : 1 |
||||||
|
12 |
GU92630206-NUT M6X1 More informationQuantity required : 3 |
||||||
|
13 |
GU98692318-SCREW M6X18 More informationQuantity required : 2 |
||||||
|
14 |
898396-ROTULE More informationQuantity required : 1 |
||||||
|
15 |
2B001009-PERNO LEVA COMANDO CAMBIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
16 |
ROTULE DE GEAR LEVER (FILTAGE A LEFT) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8110053 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/8/img/71918.jpg)
17 |
NUT ROD OF SELECTEUR OEM APRILIA COMMON A LA RANGE-AP8152138 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/8/2/img/98182.jpg)
18 |
TRINGLE DE CONTROL DE BOX OF SPEED ORIGIN E PIAGGIO V7, V9 MOTO GUZZI 2015 >/125 TUONO APRILIA 2017 > 2021-2B001941 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
19 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
20 |
ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007 More informationQuantity required : 1 |
||||||
|
21 |
GU98632322-SCREW M6X22 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
22 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/9/2/img/129792.jpg)
23 |
LEVER DE CONTROL DE SPEED OEM PIAGGIO MOTO-GUZZI 750 NEVADA, V7, 850 V9-GU20258221 More informationQuantity required : 1 |
||||||
|
24 |
AP8150471-WASHER ELASTIC More informationQuantity required : 1 |
||||||
|
25 |
LEVER DE CONTROL DE SPEED OEM PIAGGIO MOTO-GUZZI 750 NEVADA, V7, 850 V9-GU20258221 More informationQuantity required : 1 |
