Vehicle Exploded View - MOTO-GUZZI V9 850 Bobber 850 SE E5 ABS 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

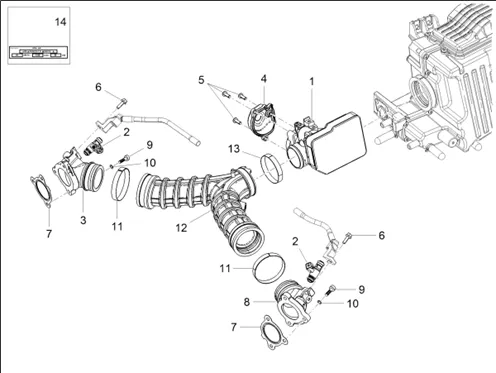

Moteur : 03.06 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1186/V9_Bobber_850_SE_E5_ABS_2023_(EMEA)_03.06.png)
1 |
CM3120107-THROTTLE BODY WITH ECU More informationQuantity required : 1 |
||||||
|
2 |
1D001393-INJECTEUR FUEL More informationQuantity required : 2 |
||||||
|
3 |
1A017660 RIGHT INTAKE FITTING More informationQuantity required : 1 |
||||||
|
4 |
880260-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
5 |
SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
6 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/7/3/img/156773.jpg)
7 |
GASKET MANIFOLD/FITTING INTAKE OEM MOTO GUZZI E5 V7, V9, V85 2019 >-1A009167 More informationQuantity required : 2 |
||||||
|
8 |
1A017659 LEFT INTAKE FITTING More informationQuantity required : 1 |
||||||
|
9 |
GU98622322-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
10 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/7/5/img/156775.jpg)
11 |
CLAMP MANCOHON BODY THROTTLE BODY OEM MOTO GUZZI V85 2019 >, V7 E5, V9 E5 CM258302 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/7/9/1/img/203791.jpg)
12 |
SLEEVE BODY THROTTLE BODY 35 KW OEM MOTO GUZZI V7, V9 E5 2021 >-1A020464 More informationQuantity required : 1 |
||||||
|
12 |
1A016324 THROTTLE BODY/HEAD MANIFOLD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/1/5/img/141215.jpg)
13 |
CLAMP BODY THROTTLE BODY OEM MOTO GUZZI V7, V9-CM258301 More informationQuantity required : 1 |
||||||
|
14 |
2G000666-DECAL More informationQuantity required : 1 |
