Vehicle Exploded View - MOTO-GUZZI V9 850 Bobber 850 SE E5 ABS 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

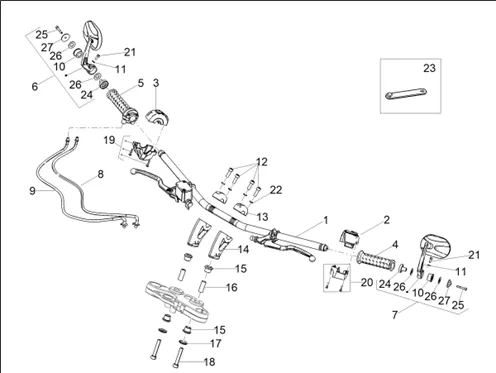

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1186/V9_Bobber_850_SE_E5_ABS_2023_(EMEA)_07.02.png)
1 |
HANDLEBAR OEM MOTO GUZZI V9 BOBBER 850 2016/2023-2B002852 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/7/9/7/img/203797.JPG)
2 |
DEVIATEUR/CONTACTEUR FEUX LEFT OEM PIAGGIO MOTO GUZZI V9 E4/E5-2D000671 More informationQuantity required : 1 |
||||||
|
3 |
2D000580 ELETTRICAL DEVICE WITH DRL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/6/img/71366.jpg)
4 |
REVETEMENT DE GRIP LEFT OEM APRILIA/MOTO GUZZI COMMUNA LAGAMME-AP8118579 More informationQuantity required : 1 |
||||||
|
5 |
2B002364-GRIP DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/7/9/8/img/203798.jpg)
6 |
RIGHT MIRROR OEM MOTO GUZZI V7 SPECIAL EDITION, V9 BOBBER 2023 >-2B006737 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/7/9/9/img/203799.jpg)
7 |
LEFT MIRROR OEM MOTO GUZZI V7 SPECIAL EDITION, V9 BOBBER 2023 >-2B006738 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/3/2/img/140932.jpg)
8 |
CABLE/CONTROL/TRANSMISSION LATCH THROTTLE OEM PIAGGIO MOTO-GUZZI V9 2016 >-2B002844 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/3/1/img/140931.jpg)
9 |
CABLE/CONTROL/TRANSMISSION OUVERTURE THROTTLE OEM PIAGGIO MOTO-GUZZI V9 2016 >-2B002843 More informationQuantity required : 1 |
||||||
|
10 |
2B007282-BUSH More informationQuantity required : 2 |
||||||
|
11 |
2B007277-WASHER PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
12 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
|
13 |
2B002091-CAVALIER SUP. More informationQuantity required : 2 |
||||||
|
14 |
2B002090-CAVALIER INF. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
15 |
RUBBER OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8144222 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
16 |
SPACER (10, 1X14, 1X38) OEM PIAGGIO COMMON A LA RANGE-854827 More informationQuantity required : 2 |
||||||
|
17 |
2B002875-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/9/4/3/img/155943.jpg)
18 |
SCREW BTR (10X60) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004798 More informationQuantity required : 2 |
||||||
|
19 |
2D000163-COQUE More informationQuantity required : 1 |
||||||
|
20 |
2D000504-LEFT COMMAND REAR SHELL More informationQuantity required : 1 |
||||||
|
21 |
2B007278-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
22 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
23 |
CLAMP SERRE CABLE 46 MM OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU01609630 More informationQuantity required : 2 |
||||||
|
23 |
GU03609600-CLAMP L36 MM More informationQuantity required : 1 |
||||||
|
24 |
2B007281-BOUSSOLE INTERNE More informationQuantity required : 2 |
||||||
|
25 |
2B007279-SCREW More informationQuantity required : 2 |
||||||
|
26 |
2B007280-SPRING A CUP More informationQuantity required : 4 |
||||||
|
27 |
2B007283-BUSH More informationQuantity required : 2 |
