Vehicle Exploded View - MOTO-GUZZI V9 850 Bobber 850 SE E5 ABS 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

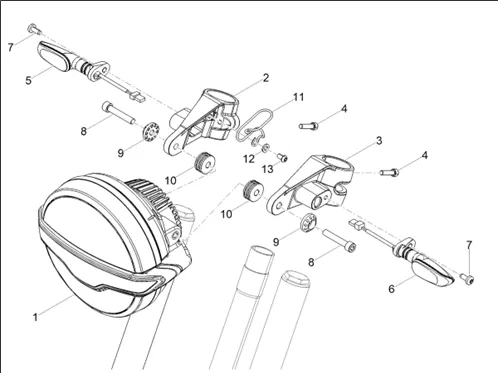

Feux - instruments : 08.01 ECLAIRAGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1186/V9_Bobber_850_SE_E5_ABS_2023_(EMEA)_08.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/5/5/9/0/img/175590.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM MOTO GUZZI V7 STONE 2021 >, V9 BOBBER 2021 >-2D000565 More informationQuantity required : 1 |
||||||
2 |
2B006732 FRONT HEAD LAMP BRACKET RH More informationQuantity required : 1 |
||||||
|
3 |
2B006729 FRONT HEAD LAMP BRACKET LH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/0/img/50830.JPG)
4 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150053 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/4/0/img/156940.jpg)
5 |
FRONT RIGHT INDICATOR OEM MOTO GUZZI V7, V85 2019 >-2D000439 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/4/1/img/156941.jpg)
6 |
2D000438 - CLIGNOTANT G. More informationQuantity required : 1 |
||||||
|
7 |
GU98612320-SCREW More informationQuantity required : 2 |
||||||
|
8 |
GU98690435-SCREW M8X35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/3/img/46743.jpg)
9 |
BUSH SPACER DE SILENCER OEM APRILIA RSV4-AP8121199 More informationQuantity required : 2 |
||||||
|
10 |
2B008061 HEADLIGHT SPACER More informationQuantity required : 2 |
||||||
|
11 |
2B007789 WIRE GUIDE More informationQuantity required : 1 |
||||||
|
12 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/8/img/66338.jpg)
13 |
SCREW BTR (6X10) OEM PIAGGIO COMMON A LA RANGE-319446 More informationQuantity required : 1 |
