Vehicle Exploded View - MOTO-GUZZI V7 750 Stone 850 E5 ABS SPECIAL EDITION 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

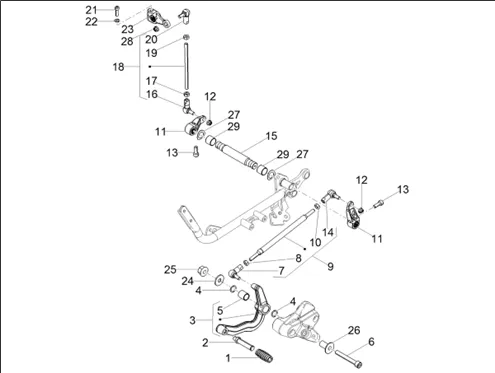

Moteur : 03.02 SÉLECTEURS INTERNES DE LA BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1341/V7_Stone_850_E5_ABS_SPECIAL_EDITION_2023_EMEA_03.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
1 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/0/3/3/img/159033.jpg)
2 |
ROD/SPINDLE PEDAL OF BRAKE OEM PIAGGIO MOTO-GUZZI V7, V9-2B004818 More informationQuantity required : 1 |
|||||||||
3 |
GEARBOX SELECTOR "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, 850 V9 -2B003348 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
4 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
|||||||||
|
5 |
895328-BUSSOLA SINTERIZZATA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/2/img/73572.jpg)
6 |
SCREW BTR (8X60) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98680460 More informationQuantity required : 1 |
|||||||||
|
7 |
2B004822-ROTULE More informationQuantity required : 1 |
|||||||||
|
8 |
2B004828-NUT More informationQuantity required : 1 |
|||||||||
|
9 |
2B004914-TIRANT More informationQuantity required : 1 |
|||||||||
|
10 |
2B004827-NUT More informationQuantity required : 1 |
|||||||||
|
11 |
2B004348-LAVIER CONTROL CHANG. VIT. More informationQuantity required : 2 |
|||||||||
|
12 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
|||||||||
|
13 |
GU98692318-SCREW M6X18 More informationQuantity required : 2 |
|||||||||
|
14 |
2B004821-ROTULE More informationQuantity required : 1 |
|||||||||
|
15 |
2B001009-PERNO LEVA COMANDO CAMBIO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
16 |
ROTULE DE GEAR LEVER (FILTAGE A LEFT) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8110053 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/8/img/71918.jpg)
17 |
NUT ROD OF SELECTEUR OEM APRILIA COMMON A LA RANGE-AP8152138 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/8/2/img/98182.jpg)
18 |
TRINGLE DE CONTROL DE BOX OF SPEED ORIGIN E PIAGGIO V7, V9 MOTO GUZZI 2015 >/125 TUONO APRILIA 2017 > 2021-2B001941 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
19 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
20 |
ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007 More informationQuantity required : 1 |
|||||||||
|
21 |
GU98632322-SCREW M6X22 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
22 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/9/2/img/129792.jpg)
23 |
LEVER DE CONTROL DE SPEED OEM PIAGGIO MOTO-GUZZI 750 NEVADA, V7, 850 V9-GU20258221 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
24 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/5/img/70925.jpg)
25 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-967363 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/5/1/img/46851.jpg)
26 |
BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121509 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
27 |
WASHER ELASTIC OEM MOTO GUZZI COMMON A LA RANGE-GU95129260 More informationQuantity required : 2 |
|||||||||
|
28 |
GU92630707-NUT M6X1 More informationQuantity required : 1 |
|||||||||
|
29 |
2B004219 ARM More informationQuantity required : 1 |
|||||||||
