Vehicle Exploded View - MOTO-GUZZI V7 750 Stone 850 E5 ABS SPECIAL EDITION 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

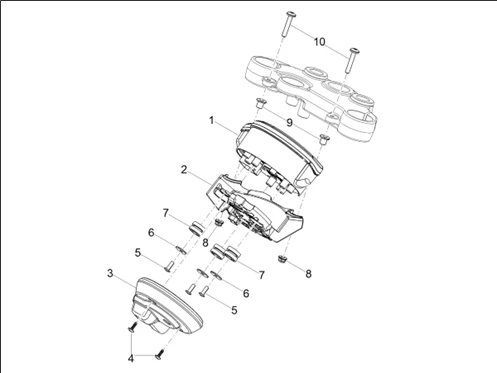

Feux - instruments : 08.02 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1341/V7_Stone_850_E5_ABS_SPECIAL_EDITION_2023_EMEA_08.02.png)
1 |
2D0005714-LCD DASHBOARD More informationQuantity required : 1 |
||||||
|
2 |
2B007543 INSTRUMENT BRACKET PLATE More informationQuantity required : 1 |
||||||
|
3 |
2B007559 DASHBOARD LOWER COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
4 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
5 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
6 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
7 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
9 |
2B005916 GASKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/1/img/96291.jpg)
10 |
SCREW TORX (6X35) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179307 More informationQuantity required : 2 |
