Vehicle Exploded View - MOTO-GUZZI V7 750 Stone 850 E5 ABS SPECIAL EDITION 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

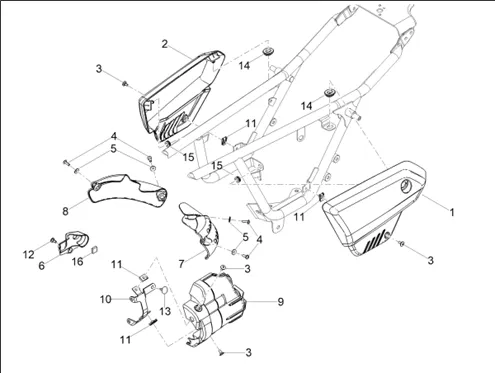

Carrosserie : 02.10 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1341/V7_Stone_850_E5_ABS_SPECIAL_EDITION_2023_EMEA_02.10.png)
1 |
2H005232000XN2-L. H. BODY SIDE More informationQuantity required : 1 |
||||||
|
1 |
2B007461 LEFT BODY SIDE More informationQuantity required : 1 |
||||||
|
2 |
2H005231000XN2-R. H. BODY SIDE More informationQuantity required : 1 |
||||||
|
2 |
2B007462 RIGHT SIDE BODY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
4 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 4 |
||||||
|
5 |
GU95005305-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/7/7/img/49777.jpg)
6 |
RUBBER DE CARROSSERIE OEM MOTO GUZZI V7-AP8144593 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/5/4/img/140854.jpg)
7 |
COVER/COVER INJECTEUR LEFT OEM MOTO GUZZI V7, V9 2017 >-2B002621 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/5/5/img/140855.jpg)
8 |
COVER/COVER INJECTEUR RIGHT OEM MOTO GUZZI V7, V9 2017 >-2B002622 More informationQuantity required : 1 |
||||||
|
9 |
2B006168-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/4/8/img/140948.jpg)
10 |
BRACKET DE COVER STARTER MOTOR OEM PIAGGIO MOTO-GUZZI 750 V7 2018 > 900 V9 2018 >-2B002937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 8 |
||||||
|
12 |
876859 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
13 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
14 |
BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
15 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 2 |
||||||
|
16 |
AP8117003-EPONGE ADHESIV 15X5 (CF. More informationQuantity required : 1 |
||||||
|
17 |
2B006091-COVER More informationQuantity required : 1 |
||||||
|
18 |
2B003422-SCREW More informationQuantity required : 1 |
