Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Stone 750 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

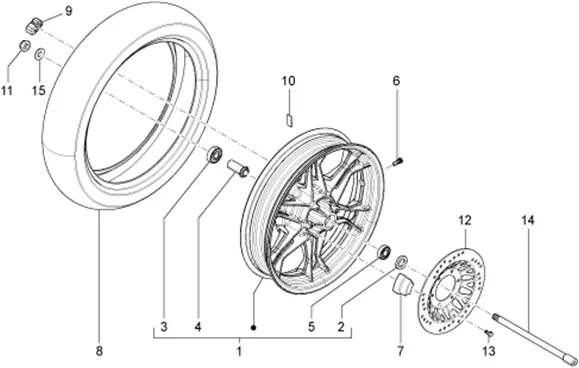

Chassis : 33.35 ROUE ARRIÈRE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/541/V7_Stone_750_2014_33.35.PNG)
1 |
887573-CERCHIO POST 3. 5X17 " CON CUSCINETTI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/7/0/img/132170.jpg)
2 |
OIL SEAL (25X40X7) REAR WHEEL OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA-GU90402538 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/1/img/132401.jpg)
3 |
BEARING (17X47X14) DE WHEEL OEM PIAGGIO MOTO-GUZZI V50, V65, 750 V7, DAYTONA, NEVADA, BREVA, 1100 SPORT-GU92204218 More informationQuantity required : 1 |
||||||
|
4 |
GU27633910-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/0/img/132400.jpg)
5 |
BEARING (17X40X12) REAR WHEEL OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, V35, V60, V65-GU92204217 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
6 |
VALVE TUBELESS OEM MOTO GUZZI COMMON A LA RANGE-GU03617710 More informationQuantity required : 1 |
||||||
|
7 |
GU32636160-COAUTCHOUC FOR BRACKET More informationQuantity required : 1 |
||||||
|
8 |
886680-TYRE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/7/1/8/img/124718.jpg)
9 |
RUBBER/SHOCK ABSORBER DE COUPLE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, 850 V9-GU32632510 More informationQuantity required : 6 |
||||||
|
10 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/8/9/img/132489.jpg)
11 |
NUT (M16X1, 5) OEM PIAGGIO COMMON A LA RANGE-GU92606316 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/4/0/2/img/99402_20260918164108.jpg)
12 |
BRAKE DISC REAR OEM PIAGGIO MOTO-GUZZI V7, NEVADA, V9, V85-887448 More informationQuantity required : 1 |
||||||
|
13 |
894505 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
14 |
GU32633360-WHEEL SPINDLE AR More informationQuantity required : 1 |
||||||
|
15 |
GU31634481-WASHER More informationQuantity required : 1 |
