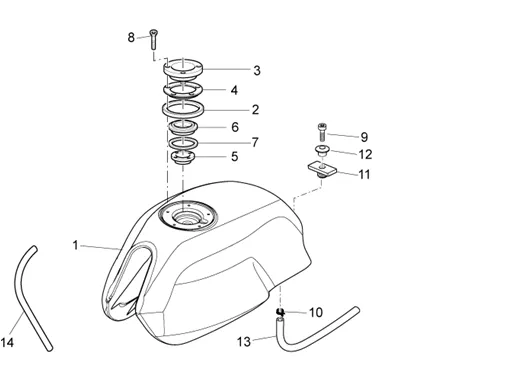

Chassis : 33.12 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/541/V7_Stone_750_2014_33.12.PNG)
1 |
2H000414000XN6 - SERBATOIO BENZ.V.NERO DIA C/DEC. '14 More informationQuantity required : 1 |
||||||
|
1 |
2H000414000XV6-TANK BENZ. V. VERDE C/DEC.'14 More informationQuantity required : 1 |
||||||
|
1 |
2H000414000YR4 - SERBATOIO BENZ.V.ROSSO DIA C/DEC. '14 More informationQuantity required : 1 |
||||||
|
1 |
2H000415000XN6-FUEL TANK More informationQuantity required : 1 |
||||||
|
1 |
2H000415000YR4-FUEL TANK More informationQuantity required : 1 |
||||||
|
1 |
887207 - SERBATOIO V7 LAMIERA More informationQuantity required : 1 |
||||||
|
1 |
887944-TANK LAMIERA V7 USA More informationQuantity required : 1 |
||||||
|
2 |
GU03102400-GUARNIZIONE FLANGIA More informationQuantity required : 1 |
||||||
|
3 |
GU03101900-FLANGIA More informationQuantity required : 1 |
||||||
|
4 |
GU03103500-ANELLO More informationQuantity required : 1 |
||||||
|
5 |
883502-RIDUZIONE TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/4/4/0/img/102440.jpg)
5 |
REDUCTION DE TANK (38) OEM MOTO GUZZI BELLAGIO, V7, NEVADA 2016 <-GU03101720 More informationQuantity required : 1 |
||||||
|
6 |
GU03102200-GHIERA CAP More informationQuantity required : 1 |
||||||
|
7 |
GU03101600-GUARNIZIONE More informationQuantity required : 2 |
||||||
|
8 |
SCREW BTR HEAD BOMBE (5X12) OEM PIAGGIO COMMON A LA RANGE-GU03103200 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
9 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
10 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
11 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120557 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/0/img/71480.jpg)
12 |
AP8121673 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
13 |
GU00823944050-TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
14 |
2B000909-GASKET More informationQuantity required : 1 |
