Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Stone 750 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

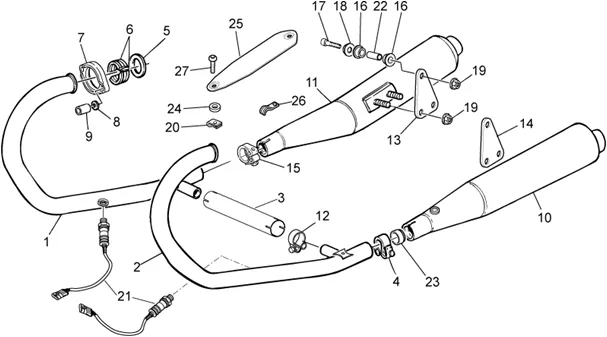

Chassis : 33.23 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/541/V7_Stone_750_2014_33.23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/4/3/img/99543.jpg)
1 |
HOSE EXHAUST RIGHT OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA 2012 > 2014-887846 More informationQuantity required : 1 |
||||||
1 |
B063854-(*) COLLETTORE SCARICO DX JP * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/4/4/img/99544.jpg)
2 |
HOSE EXHAUST LEFT OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA 2012 > 2014-887847 More informationQuantity required : 1 |
||||||
|
2 |
B063855 - (*)COLLETTORE SCARICO SX JP More informationQuantity required : 1 |
||||||
|
3 |
B063022-TUBO COMPENSATORE More informationQuantity required : 1 |
||||||
|
4 |
CLAMP DE SILENCER EXHAUST OEM MOTO GUZZI 750 NEVADA, V7 2016 <-883294 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/3/img/129463.jpg)
5 |
GASKET EXHAUST OEM PIAGGIO MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65-GU19025280 More informationQuantity required : 2 |
||||||
|
6 |
GU19025460-SPACER More informationQuantity required : 4 |
||||||
|
7 |
GU32121010-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
8 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/7/6/img/131076.jpg)
9 |
NUT EXHAUST OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, V7-GU31121880 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/8/9/2/img/127892.jpg)
10 |
SILENCER EXHAUST LEFT MOTO-GUZZI 750 NEVADA, V7-2B001679 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/7/1/img/98171.jpg)
11 |
EXHAUST "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, V7 - RIGHT -2B001678 More informationQuantity required : 1 |
||||||
|
12 |
978385-FASCETTA SERR CAMERA ESP D 35 More informationQuantity required : 2 |
||||||
|
13 |
883297-PLATE SUPP SILENZ DX More informationQuantity required : 1 |
||||||
|
14 |
883298-PLATE SUPP SILENZ SX More informationQuantity required : 1 |
||||||
|
15 |
883293-FASCETTA COLLETORE SCARICO DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
16 |
RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/0/0/img/133200.jpg)
17 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-GU98690440 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
18 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/9/img/132519.jpg)
19 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-GU92640508 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/6/img/70836.jpg)
21 |
SONDE LAMDA OEM PIAGGIO APRILIA 750 SHIVER 2007 >, DORSODURO 2008 >, 1200 CAPONORD 2014 >, DORSODURO 2010 >/MOTO-GUZZI 750 V7 2012 >, NEVADA 2012 >, 850 V9 2016 >, 1200 STELVIO 2011 >-896110 More informationQuantity required : 2 |
||||||
|
22 |
AP8121072 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/7/4/img/132274.jpg)
23 |
GASKET BUSH EXHAUST OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, V7, 850 V9-GU91113826 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/8/img/71418.jpg)
24 |
AP8120870 - RONDELLE ISOLANTE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/1/8/5/img/141185.jpg)
25 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO MOTO-GUZZI 750 V7 CLASSIC 2008 > 2012, V7 SPECIAL 2014 >, V7 STONE 2012 >, 750 NEVADA 2009 > 2013, 1100 CALIFORNIA 2003 > 2012-8837046 More informationQuantity required : 2 |
||||||
|
26 |
GU933011755-CAVALIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/4/7/img/132947.jpg)
27 |
SCREW FLANGE BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-GU98210612 More informationQuantity required : 4 |
All the exploded views of this vehicle
-
