Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 USA CND 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

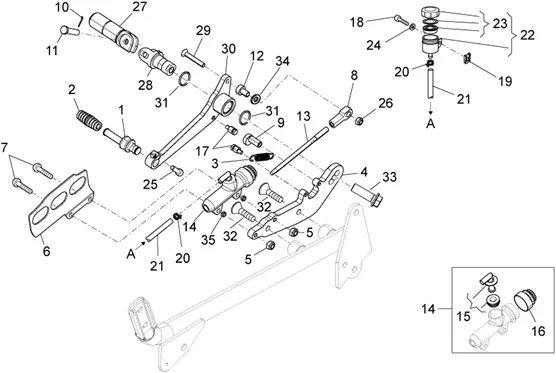

Chassis : 33.26 MAÎT.CYL. FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/538/V7_Racer_750_USA_CND_2015_33.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/1/8/5/img/99185.jpg)
1 |
ROD OF GEAR LEVER OU DE PEDAL OF BRAKE REAR OEM PIAGGIO MOTO-GUZZI 750 V7 RACER 2011 >-886665 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
2 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/9/img/71499.jpg)
3 |
SPRING PEDAL OF BRAKE OEM MOTO GUZZI V7, V9, V85-AP8121927 More informationQuantity required : 1 |
||||||
4 |
PLATINE FOOTREST RIGHT OEM PIAGGIO MOTO-GUZZI 750 V7 RACER-898288 More informationQuantity required : 1 |
||||||
|
5 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
||||||
|
6 |
GU01665410-PROTEZIONE PUMP BRAKE NERO * More informationQuantity required : 1 |
||||||
|
7 |
GU98370625-SCREW M6X25 More informationQuantity required : 2 |
||||||
|
8 |
GU18257551-PIVOT More informationQuantity required : 1 |
||||||
|
9 |
886666-BUSSOLA ECCENTRICA FINECORSA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/2/img/132762.jpg)
10 |
GOUPILLE (2. 2X26) OEM PIAGGIO COMMON A LA RANGE-GU95401215 More informationQuantity required : 1 |
||||||
|
11 |
GU23442210-PIVOT * More informationQuantity required : 1 |
||||||
|
12 |
898287-BUSSOLA BLOCCHETTO TIRANTE More informationQuantity required : 1 |
||||||
|
13 |
978970-ASTA NUDA COMANDO PUMP BRAKE POST More informationQuantity required : 1 |
||||||
|
14 |
AP8133643-MA? T. CYL. BRAKE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.jpg)
15 |
FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057 More informationQuantity required : 1 |
||||||
|
16 |
SOUFFLET EN RUBBER ROD OF PUMP BRAKE REAR APRILIA/MOTO GUZZI-AP8113288 More informationQuantity required : 1 |
||||||
|
17 |
898286-PERNO AGGANCIO MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
18 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
19 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
20 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
||||||
|
21 |
GU00823950050-T GOMMA 5X9 More informationQuantity required : 1 |
||||||
|
22 |
AP8133873-TANK OIL FRENI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
23 |
CAP BOCAL DE BRAKE MASTER CYLINDER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO-AP8113553 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
24 |
WASHER PLATE (5. 25X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95100059 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
25 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
||||||
|
26 |
GU92630206-NUT M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/7/4/3/img/99743.jpg)
27 |
FOOTREST PILOTE RIGHT OU LEFT OEM PIAGGIO MOTO-GUZZI V7 RACER-898281 More informationQuantity required : 1 |
||||||
|
28 |
898612-BRACKET PEDANA PILOTA DX * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/2/img/71892.jpg)
29 |
SCREW BTR HEAD FRAISEE (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8150468 More informationQuantity required : 1 |
||||||
|
30 |
898285-ASSIEME LEVA BRAKE * More informationQuantity required : 1 |
||||||
|
31 |
AP9100477-ANELLO OR D. FILO 2 D. INT. 18 More informationQuantity required : 2 |
||||||
|
32 |
GU98252420-SCREW FHC M8X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/6/img/71966.jpg)
33 |
SCREW FLANGE TH (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8152320 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
34 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 1 |
||||||
|
35 |
AP8134640-SPACER BODY FILTER More informationQuantity required : 2 |
