Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 USA CND 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

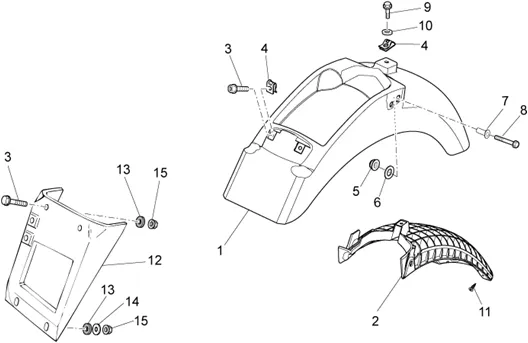

Chassis : 33.15 CARROSSERIE ARRIÉRE I- GARDE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/538/V7_Racer_750_USA_CND_2015_33.15.PNG)
1 |
97894600Y02-PARAF POST NERO * More informationQuantity required : 1 |
||||||
|
2 |
978947-RINFORZO MUDGUARD POSTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
|
5 |
GU92630108-NUT More informationQuantity required : 2 |
||||||
|
6 |
GU91120806-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/2/img/73552.jpg)
7 |
GU95005310 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/6/8/img/133068.jpg)
8 |
GU98370835 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
9 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
|
10 |
GU91180601-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
11 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 3 |
||||||
|
12 |
B063167-PATELLA PARASPRUZZI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
13 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 4 |
||||||
|
14 |
GU95100141-WASHER 6, 5X20X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 4 |
