Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 USA CND 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

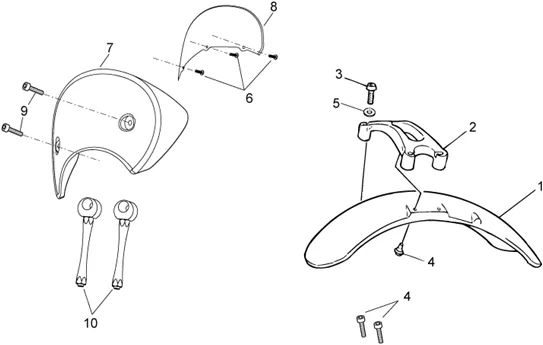

Chassis : 33.13 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/538/V7_Racer_750_USA_CND_2015_33.13.PNG)
1 |
88673000Y02-(*) PARAF ANT V7 RACER * More informationQuantity required : 1 |
||||||
|
2 |
8832666-* PLATE STABILIZZATRICE More informationQuantity required : 1 |
||||||
|
3 |
GU98370845 - VIS More informationQuantity required : 4 |
||||||
|
4 |
GU31439565 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
5 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 3 |
||||||
|
7 |
2H000421000Y02-CUPOLINO PORTAFANALE C/DEC.'14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/7/3/3/img/99733.jpg)
7 |
DEFLECTOR AIR/COUPOLE BRUTE OEM MOTO GUZZI V7 RACER 2011 > 2016-898179 More informationQuantity required : 1 |
||||||
|
8 |
898180-VETRO CUPOLINO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/6/img/73566.jpg)
9 |
SCREW BTR SPECIALE HEAD BOMBEE (6X16) OEM MOTO GUZZI COMMON A LA RANGE-GU98370616 More informationQuantity required : 2 |
||||||
|
10 |
886724 - SUPPORTO CUPOLINO More informationQuantity required : 2 |
