Vehicle Exploded View - MOTO-GUZZI V7 750 V7 III Stone 750 E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

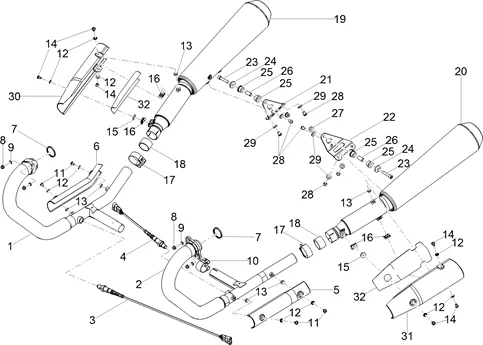

Moteur : 03.330 POT D''ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/804/V7_III_Stone_750_E4_ABS_2017_(EMEA_LATAM)_03.330.png)
1 |
2B004538-MANIFOLD ÉCHAPP. D. More informationQuantity required : 1 |
||||||
|
2 |
2B004537-MANIFOLD ÉCHAPP. G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/6/img/70836.jpg)
3 |
SONDE LAMDA OEM PIAGGIO APRILIA 750 SHIVER 2007 >, DORSODURO 2008 >, 1200 CAPONORD 2014 >, DORSODURO 2010 >/MOTO-GUZZI 750 V7 2012 >, NEVADA 2012 >, 850 V9 2016 >, 1200 STELVIO 2011 >-896110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/9/img/67299.jpg)
4 |
SONDE LAMBDA L 325 MM OEM PIAGGIO COMMON A LA RANGE-584344 More informationQuantity required : 1 |
||||||
|
5 |
PROTECTOR TUBE D'ECHAPPEMENT LEFT OEM PIAGGIO MOTO-GUZZI 750 V7 CARBON, RACER, STONE, ROUGH-2B0035275 More informationQuantity required : 1 |
||||||
|
6 |
PROTECTOR TUBE D'ECHAPPEMENT RIGHT OEM PIAGGIO MOTO-GUZZI 750 V7 CARBON, RACER, STONE, ROUGH-2B0035285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/2/8/5/img/214285.jpg)
7 |
GASKET EXHAUST EN SORTIE DE CYLINDER HEAD OEM PIAGGIO APRILIA 1000-1100 RSV-4 2011 >, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9-2B012220 More informationQuantity required : 2 |
||||||
|
7 |
GASKET EXHAUST EN SORTIE DE CYLINDER HEAD OEM PIAGGIO APRILIA 1000-1100 RSV-4 2011 >, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9-2B012220 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.jpg)
8 |
NUT FLANGE (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660021 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
9 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
|
10 |
B063292-FASCETTA D 37 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/9/4/9/img/127949.jpg)
11 |
SCREW FLANGE BTR (6X10) OEM PIAGGIO COMMON A LA RANGE-2B002187 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
12 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/7/img/70637.jpg)
13 |
WASHER INTERCALAIRE OEM PIAGGIO COMMON A LA RANGE-876879 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/9/2/img/142492.jpg)
14 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-2B004031 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/8/img/71418.jpg)
15 |
AP8120870 - RONDELLE ISOLANTE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/9/img/70559.jpg)
17 |
CLAMP EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 350-400-500/MOTO-GUZZI V7, V9/GILERA GP 800/APRILIA 850 SRV-874957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/7/4/img/132274.jpg)
18 |
GASKET BUSH EXHAUST OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, V7, 850 V9-GU91113826 More informationQuantity required : 2 |
||||||
|
19 |
2B0048645-SILENCER D. More informationQuantity required : 1 |
||||||
|
19 |
2B0048485-SILENCER D. More informationQuantity required : 1 |
||||||
|
20 |
2B0048635-SILENCER G More informationQuantity required : 1 |
||||||
|
20 |
2B0048475 - SILENCIEUX G More informationQuantity required : 1 |
||||||
|
21 |
2B003152-BRACKET More informationQuantity required : 1 |
||||||
|
22 |
2B003151-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/0/0/img/133200.jpg)
23 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-GU98690440 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
24 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 2 |
||||||
|
25 |
AP8121072 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
26 |
RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/5/img/70925.jpg)
27 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-967363 More informationQuantity required : 2 |
||||||
|
28 |
AP8152055-SCREW More informationQuantity required : 6 |
||||||
|
29 |
GU95008308-WASHER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/7/2/5/img/146725.jpg)
30 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST RIGHT OEM PIAGGIO MOTO-GUZZI 750 V7 E4 CARBON 2018 >, RACER 2017 >, STONE 2017 >, ROUGH 2018 >-2B0035516 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/6/2/img/142462.jpg)
31 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST LEFT OEM PIAGGIO MOTO-GUZZI 750 V7 E4 CARBON, RACER, STONE, ROUGH-2B0035505 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/7/1/img/142471.jpg)
32 |
PROTECTOR THERMAL DE SILENCER EXHAUST OEM MOTO GUZZI V7 E4-2B003643 More informationQuantity required : 2 |
