Vehicle Exploded View - MOTO-GUZZI V7 750 V7 III Stone 750 E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

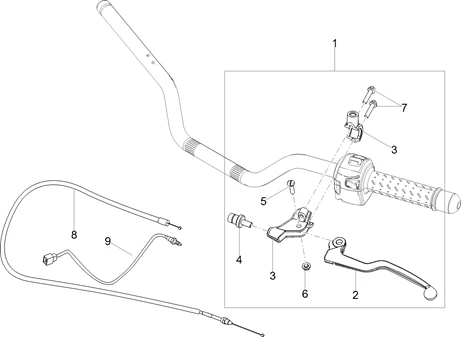

Guidon - commandes : 07.030 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/804/V7_III_Stone_750_E4_ABS_2017_(EMEA_LATAM)_07.030.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/1/6/img/140816.jpg)
1 |
GRIP CLUTCH OEM MOTO GUZZI V7, V9 2017 >-2B002391 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/1/5/img/140815.jpg)
2 |
LEVER CLUTCH OEM PIAGGIO MOTO-GUZZI 750 V7 2017 >, 850 V9 2016 >-2B002390 More informationQuantity required : 1 |
||||||
3 |
AP8118349-CAVALIER More informationQuantity required : 1 |
||||||
|
4 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
|
4 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/4/img/72194.jpg)
5 |
SCREW LEVER CLUTCH OEM APRILIA 50-125 RS/MOTO GUZZI 750 BREVA, V7, V9-AP8213028 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8118490 More informationQuantity required : 1 |
||||||
|
7 |
GU97202325-SCREW FLANGE BLACK M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/5/3/img/140953.jpg)
8 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO 750-850 V7, V9 MOTO-GUZZI 2017 >-2B006106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/0/7/0/img/141070.jpg)
9 |
INTERRUPTEUR/CONTACTEUR CLUTCH OEM PIAGGIO MOTO-GUZZI V7, V9 2016 >-2D0002885 More informationQuantity required : 1 |
