Vehicle Exploded View - MOTO-GUZZI V7 750 V7 III Stone 750 E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

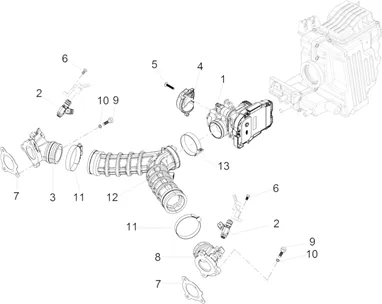

Moteur : 03.060 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/804/V7_III_Stone_750_E4_ABS_2017_(EMEA_LATAM)_03.060.png)
1 |
CM275405-BODY A THROTTLE BODY More informationQuantity required : 1 |
||||||
|
2 |
1D001393-INJECTEUR FUEL More informationQuantity required : 2 |
||||||
|
3 |
2A000609-FITTING D'ADMISSION More informationQuantity required : 1 |
||||||
|
4 |
880260-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
5 |
SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
6 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/7/0/5/img/140705.jpg)
7 |
GASKET FITTING INTAKE OEM MOTO GUZZI V7 2017-2020/V9 E4 2016-2020-2A000612 More informationQuantity required : 2 |
||||||
|
8 |
2A000608-FITTING D'ADMISSION More informationQuantity required : 1 |
||||||
|
9 |
GU98622322-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
10 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/1/5/img/141215.jpg)
11 |
CLAMP BODY THROTTLE BODY OEM MOTO GUZZI V7, V9-CM258301 More informationQuantity required : 2 |
||||||
|
12 |
SLEEVE/FITTING BODY DE THROTTLE BODY (VERSION FULL POWER) OEM PIAGGIO MOTO-GUZZI 850 V9-2B001823 More informationQuantity required : 1 |
||||||
|
13 |
CLAMP BODY THROTTLE BODY OEM MOTO GUZZI V7, V9-CM258301 More informationQuantity required : 1 |
