Vehicle Exploded View - MOTO-GUZZI V7 750 V7 III Milano 750 E4 ABS 2018 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

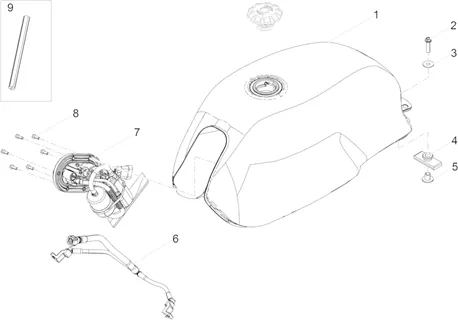

Réservoir : 09.010 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/803/V7_III_Milano_750_E4_ABS_2018_(EMEA_LATAM)_09.010.png)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
2 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/9/img/132669.jpg)
3 |
WASHER 8, 5X24X2 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU95005312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
4 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120557 More informationQuantity required : 1 |
||||||
|
5 |
AP8121332-BUSH More informationQuantity required : 1 |
||||||
|
6 |
2B002486-HOSE More informationQuantity required : 1 |
||||||
|
7 |
2B009140-FUEL PUMP More informationQuantity required : 1 |
||||||
|
7 |
2B009140-FUEL PUMP More informationQuantity required : 1 |
||||||
|
7 |
2B009140-FUEL PUMP More informationQuantity required : 1 |
||||||
|
8 |
2B002567-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
9 |
2B000909-GASKET More informationQuantity required : 1 |
