Vehicle Exploded View - MOTO-GUZZI V7 750 V7 III Milano 750 E4 ABS 2018 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

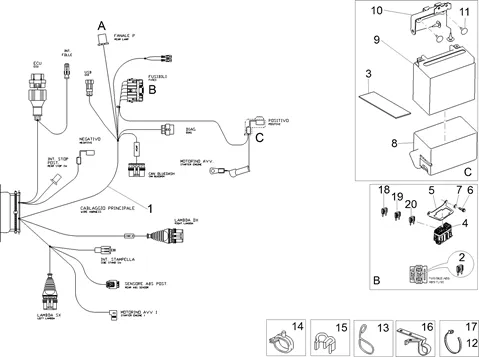

Dispositifs électriques : 11.030 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/803/V7_III_Milano_750_E4_ABS_2018_(EMEA_LATAM)_11.030.png)
1 |
2D000334 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
CM225720-FUSIBLE More informationQuantity required : 2 |
||||||
|
3 |
AP8144552-GOMMA LAT. APPOGGIO BATTERIA More informationQuantity required : 1 |
||||||
|
4 |
584211-FUSE HOLDER TERM. BOARD 6 More informationQuantity required : 1 |
||||||
|
5 |
883161-STAFFA FISSAGGIO SCATOLA FUSIBILI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
6 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
7 |
WASHER PLATE (5. 25X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95100059 More informationQuantity required : 2 |
||||||
|
8 |
2B002781-COIFFE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/7/img/67807.jpg)
9 |
BATTERY 12V 12AH YTX14-BS OEM PIAGGIO WITHOUT SERVICE SUPPLIED WITH PACK ACIDE (LG151XL87XH147)-638733 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/6/9/5/0/img/136950.jpg)
9 |
BATTERY 12V 12 AH PTX14-BS OEM PIAGGIO 125-250-300-400-500 MP3, 250-400 X-EVO/GILERA 125-250-300 NEXUS, 800 GP/APRILIA 125 SR-MAX, 750-1200 DORSODURO, 850 MANA (LG150XL87XH145)-1R000319 More informationQuantity required : 1 |
||||||
|
10 |
GU06418600-PLATE FIX. BATTERY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
11 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
12 |
HOSE CLAMP NYLON TYPE RILSAN 3. 6X375MM OEM PIAGGIO COMMON A LA RANGE-GU93304390 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/1/1/img/72111.jpg)
13 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8181140 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
14 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
||||||
|
15 |
894704-GUIDE-CABLE More informationQuantity required : 9 |
||||||
|
16 |
B043850-CLAMP More informationQuantity required : 1 |
||||||
|
17 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 24 |
||||||
|
18 |
CM225705-FUSIBILE LITTELFUSE ROSSO MARRONE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
19 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
20 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 1 |
