Vehicle Exploded View - MOTO-GUZZI V7 750 III Anniversario 750 E4 ABS 2017 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

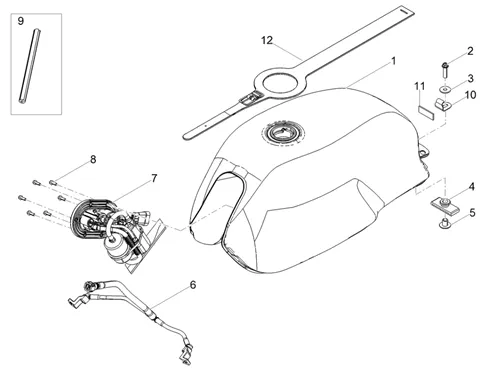

Réservoir : 09.010 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/809/V7_III_Anniversario_750_E4_ABS_2017_(EMEA)_09.010.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/4/7/img/142447.jpg)
1 |
TANK UNPAINTED OEM MOTO GUZZI V7 2017 >-2B003435 More informationQuantity required : 1 |
||||||
1 |
2H0018555 - RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
2 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
3 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
4 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120557 More informationQuantity required : 1 |
||||||
|
5 |
AP8121332-BUSH More informationQuantity required : 1 |
||||||
|
6 |
2B002486-HOSE More informationQuantity required : 1 |
||||||
|
7 |
2B009140-FUEL PUMP More informationQuantity required : 1 |
||||||
|
7 |
2B009140-FUEL PUMP More informationQuantity required : 1 |
||||||
|
7 |
2B009140-FUEL PUMP More informationQuantity required : 1 |
||||||
|
8 |
2B002567-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
9 |
2B000909-GASKET More informationQuantity required : 1 |
||||||
|
10 |
2S000856-CROCHET TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/7/img/95197.jpg)
11 |
GASKET L120 DIAM 7 OEM PIAGGIO COMMON A LA RANGE-CM017718 More informationQuantity required : 1 |
||||||
|
12 |
2B004426000C2-BELT More informationQuantity required : 1 |
