Vehicle Exploded View - MOTO-GUZZI V7 750 III Anniversario 750 E4 ABS 2017 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

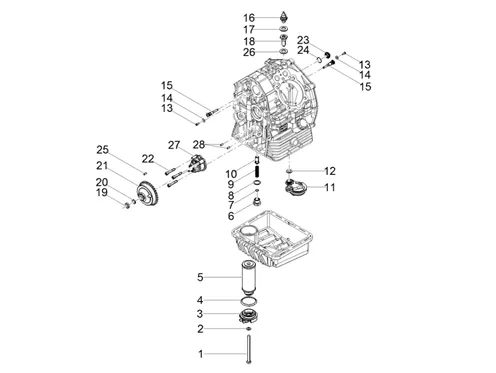

Moteur : 03.190 LUBRIFICATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/809/V7_III_Anniversario_750_E4_ABS_2017_(EMEA)_03.190.png)
1 |
GU27152885-BOLT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
2 |
WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200 More informationQuantity required : 1 |
|||||||||
|
3 |
COVER OIL FILTER OEM MOTO GUZZI V7 2020 <-1A027178 More informationQuantity required : 1 |
|||||||||
|
3 |
1A0051995 - COUVERCLE FILTRE A HUILE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/3/img/132243.jpg)
4 |
GASKET COVER DE OIL FILTER OEM PIAGGIO MOTO-GUZZI V7, V9, V85-GU90706444 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/2/img/134492.jpg)
5 |
OIL FILTER OEM PIAGGIO MOTO-GUZZI 750 V7, V9, V85, NEVADA, 750 BREVA, STRADA, V50-2A000633 More informationQuantity required : 1 |
|||||||||
|
6 |
GU31159050-CAP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
7 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
8 |
WASHER CUIVRE (18. 25X24X1) OEM MOTO GUZZI COMMON A LA RANGE-GU18144350 More informationQuantity required : 3 |
|||||||||
|
9 |
GU94321079-SPRING More informationQuantity required : 1 |
|||||||||
|
10 |
GU31150950-PISTON More informationQuantity required : 1 |
|||||||||
|
11 |
1A004549-OIL FILTER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/7/img/65977.jpg)
12 |
O-RING (15X17X1. 5) OEM PIAGGIO COMMON A LA RANGE-237553 More informationQuantity required : 1 |
|||||||||
|
13 |
1A005257-SCREW More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
14 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 2 |
|||||||||
|
15 |
1A004442-JET More informationQuantity required : 2 |
|||||||||
|
16 |
643090 - CAPTEUR POUR HUILE More informationQuantity required : 1 |
|||||||||
|
17 |
GU95100309-WASHER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/3/2/2/img/99322.jpg)
18 |
FITTING DE MANOMETRE OF PRESSURE D'HUILE OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, V7, 850 V9-887093 More informationQuantity required : 1 |
|||||||||
|
19 |
GU92602510-NUT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
20 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 1 |
|||||||||
|
21 |
GU20147710-SPROCKET OF PUMP More informationQuantity required : 1 |
|||||||||
|
22 |
1A007008-SCREW More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/9/img/68589.jpg)
23 |
COVER DE CREPINE D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-826165 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
24 |
GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536 More informationQuantity required : 1 |
|||||||||
|
25 |
GU92296723-ROLLER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/7/img/132737.jpg)
26 |
GASKET OF FITTING SENSOR OF PRESSION OEM MOTO GUZZI BREVA, NEVADA, V7, V9 2020 <-GU95100602 More informationQuantity required : 1 |
|||||||||
|
27 |
1A006053 - POMPE A HUILE COMPLETE More informationQuantity required : 1 |
|||||||||
|
28 |
GU19018920-GOUPILLE More informationQuantity required : 2 |
|||||||||
