Vehicle Exploded View - MOTO-GUZZI V7 750 III Anniversario 750 E4 ABS 2017 (EMEA) MOTO-GUZZI

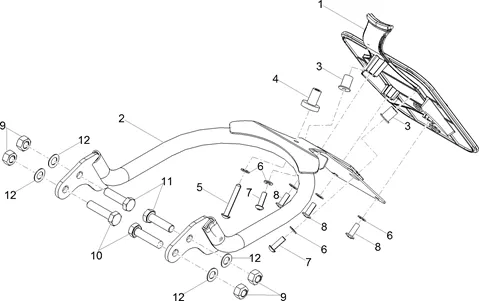

Carrosserie : 02.140 CARROSSERIE POSTERIEURE
Carrosserie posterieure
Search
2S0002935 - PORTE-PLAQUE

1
P2R reference P2R reference 141173
Maker reference Maker reference 2S0002935

2S0002935 - PORTE-PLAQUE

More information

Quantity required : 1

2S001000 - SUPPORT PLAQUE IM.

2
P2R reference P2R reference 146855
Maker reference Maker reference 2S001000

2S001000-BRACKET PLATE IM.

More information

Quantity required : 1

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

3
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

More information

Quantity required : 2

GU93232005 - CAOUTCHOUC

4
P2R reference P2R reference 132594
Maker reference Maker reference GU93232005

GU93232005-RUBBER

More information

Quantity required : 1

AP8225369 - VIS

5
P2R reference P2R reference 57594
Maker reference Maker reference AP8225369

AP8225369-SCREW

More information

Quantity required : 1

WASHER PLATE (6. 5X9. 6X0. 5) OEM PIAGGIO COMMON A LA RANGE-674927

6
P2R reference P2R reference 38909
Maker reference Maker reference 674927

WASHER PLATE (6. 5X9. 6X0. 5) OEM PIAGGIO COMMON A LA RANGE-674927

More information

Quantity required : 6

GU98370516 - VIS M5X16

7
P2R reference P2R reference 133053
Maker reference Maker reference GU98370516

GU98370516-SCREW M5X16

More information

Quantity required : 2

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

8
P2R reference P2R reference 71897
Maker reference Maker reference AP8150509

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

More information

Quantity required : 3

AP8152350 - ECROU

9
P2R reference P2R reference 50989
Maker reference Maker reference AP8152350

AP8152350-NUT

More information

Quantity required : 4

SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072

10
P2R reference P2R reference 65612
Maker reference Maker reference 0300725

SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072

More information

Quantity required : 2

SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150447

11
P2R reference P2R reference 50879
Maker reference Maker reference AP8150447

SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150447

More information

Quantity required : 2

WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376

12
P2R reference P2R reference 71870
Maker reference Maker reference AP8150376

WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376

More information

Quantity required : 4
